Product CatalogPart Number
AZ888-1A-9DEA
Manufacturer
American ZettlerDescription
RELAY GENERAL PURPOSE SPST 8A 9V
Datasheet
DatasheetPackage
-
In Stock
31,757 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AZ888-1A-9DEA
AZ888-1A-9DEA
lmages are for reference only.Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole
Quick Inquiry
AZ888-1A-9DEA
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | American Zettler |
| Series | AZ888 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 8 A |
| Switching Voltage | 380VAC, 240VDC - Max |
| Load - Max Switching | 2000VA, 150W |
| Coil Current | 33.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 0.9 VDC |
| Operate Time | 5 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO), Gold (Au) |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 270 Ohms |
| Base Product Number | AZ888-1A |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | AZ888-1A-12DER | AZ888-1A-3D | AZ888-1A-5D | AZ888-1A-5DE |
| Manufacturer | American Zettler | American Zettler | American Zettler | American Zettler |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 8A 12V | RELAY GENERAL PURPOSE SPST 8A 3V | RELAY GENERAL PURPOSE SPST 8A 5V | RELAY GENERAL PURPOSE SPST 8A 5V |
| Series | American Zettler | American Zettler | American Zettler | American Zettler |
| Packaging | Box | Box | Box | Box |
Customers Also Interested in
Recommended Products
AZ888-1A-12DER
American Zettler
AZ888-1A-3D
American Zettler
AZ888-1A-5D
American Zettler
AZ888-1A-5DE
American Zettler
AZ888-1A-5DEA
American Zettler
AZ888-1AB-5DE
American Zettler
AZ888-1AB-5DEA
American Zettler
AZ888-1AB-6DE
American Zettler
AZ888-2A-12DE
American Zettler
AZ888-2A-12DEA
American Zettler
AZ888P1-1A-12D
American Zettler
AZ888P1-1A-5D
American Zettler
AZ888P1-1A-5DE
American Zettler
AZ888P2-1A-5DE
American Zettler
AZ888P2-1A-6DE
American Zettler
AZ888P2-1AB-12DE
American Zettler
AZ888P2-1AB-24DEA
American Zettler

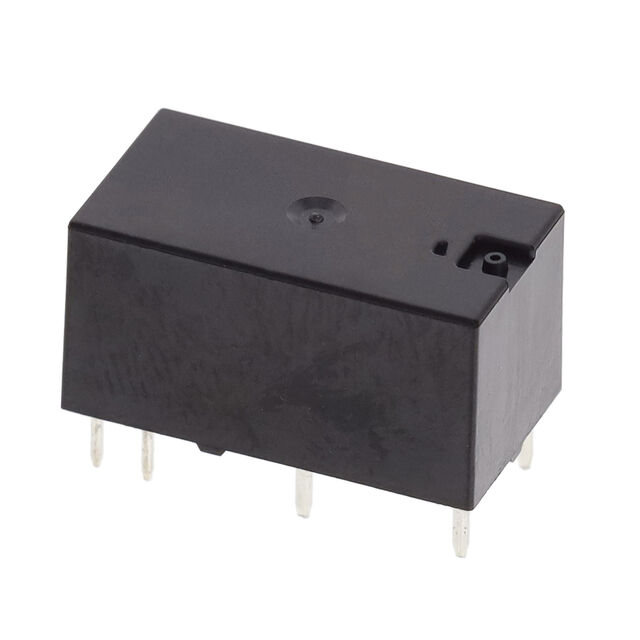

AZ888P2-1AB-5D
