Product CatalogPart Number
AZ9731-1A-24DC1
Manufacturer
American ZettlerDescription
RELAY AUTOMOTIVE SPST 40A 24V
Datasheet
DatasheetPackage
-
In Stock
96,493 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AZ9731-1A-24DC1
AZ9731-1A-24DC1

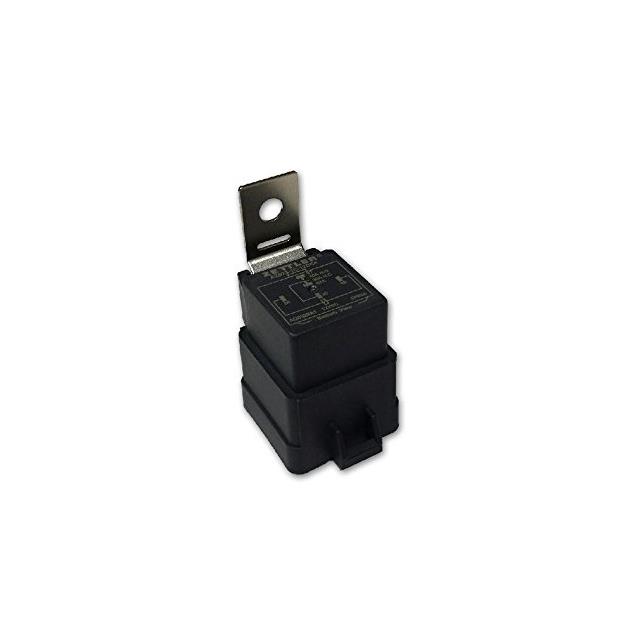

lmages are for reference only.Payment Methods
Delivery Services
Quick Inquiry
AZ9731-1A-24DC1
Specifications
| Category | Relays - Automotive Relays - |
| Manufacturer | American Zettler |
| Series | AZ9731 |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Coil Type | Non Latching |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 75VDC - Max |
| Must Operate Voltage | 15.6 VDC |
| Must Release Voltage | 3.6 VDC |
| Operate Time | 7 ms |
| Release Time | 5 ms |
| Features | MINI-ISO w/ Steel Mounting Bracket |
| Mounting Type | Chassis Mount |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Operating Temperature | -40°C ~ 125°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Coil Power | 680mW |
| Coil Resistance | 360 Ohms |
| Base Product Number | - |
| Coil Current | 66.7 mA |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | AZ9731-1A-24DC1 | AZ9731-1A-24DC2 | AZ9731-1A-24DC2 | AZ9731-1A-24DC4 |
| Manufacturer | American Zettler | American Zettler | American Zettler | American Zettler |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY AUTOMOTIVE SPST 40A 24V | RELAY AUTOMOTIVE SPST 40A 24V | RELAY AUTOMOTIVE SPST 40A 24V | RELAY AUTOMOTIVE SPST 40A 24V |
| Series | AZ9731 | AZ9731 | AZ9731 | AZ9731 |
| Packaging | Box | Box | Box | Box |
