Product CatalogPart Number
AZEV200-2AE-9D
Manufacturer
American ZettlerDescription
RELAY EV CHARGING DPST 40A 9V
Datasheet
DatasheetPackage
-
In Stock
52,072 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

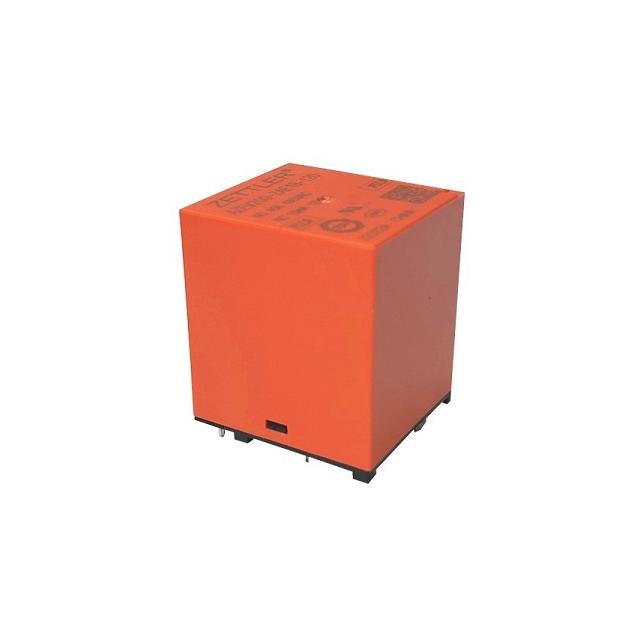

AZEV200-2AE-9D
AZEV200-2AE-9D
lmages are for reference only.Payment Methods
Delivery Services
EV Charging Relay DPST-NO (2 Form A) 9VDC Coil Through Hole
Quick Inquiry
AZEV200-2AE-9D
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | American Zettler |
| Series | AZEV200 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 9VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 480VAC - Max |
| Load - Max Switching | 19200VA |
| Coil Current | 216 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 6.7 VDC |
| Must Release Voltage | 0.45 VDC |
| Operate Time | 30 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 95°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CQC, cURus, TUV |
| Relay Type | EV Charging |
| Grade | - |
| Qualification | - |
| Coil Resistance | 55.4 Ohms |
| Base Product Number | AZEV200 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | AZEV200-2AE-12D | AZEV200-2AE-24D | AZEV200-2AE-6D | AZEV200-2AE1B-12D |
| Manufacturer | American Zettler | American Zettler | American Zettler | American Zettler |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY EV CHARGING DPST 40A 12V | RELAY EV CHARGING DPST 40A 24V | RELAY EV CHARGING DPST 40A 6V | RELAY EV CHARGING 3PST 40A 12V |
| Series | American Zettler | American Zettler | American Zettler | American Zettler |
| Packaging | Tube | Tube | Tube | Tube |
