Product CatalogPart Number
B1224S-2WR3
Manufacturer
Mornsun America, LLCDescription
DC DC CONVERTER 24V 1W
Datasheet
DatasheetPackage
7-SIP Module, 4 Leads
In Stock
24,585 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
B1224S-2WR3
B1224S-2WR3
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 83mA 10.8V - 13.2V Input
Quick Inquiry
B1224S-2WR3
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 83mA |
| Power (Watts) | 1.99 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, UL |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

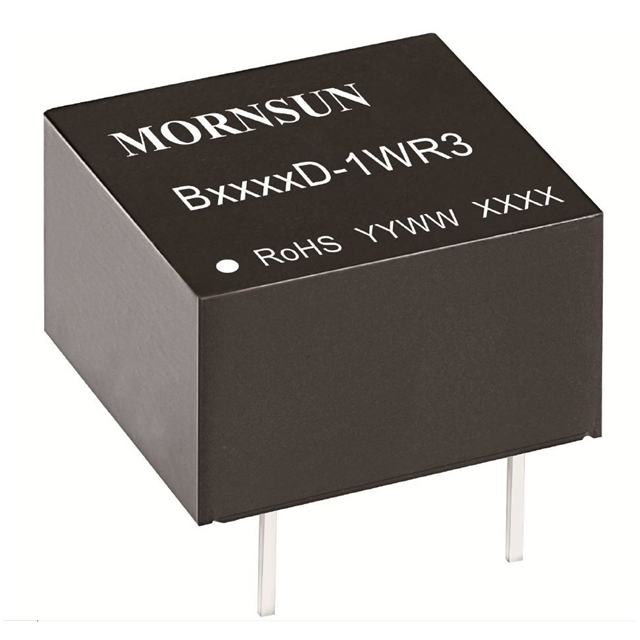

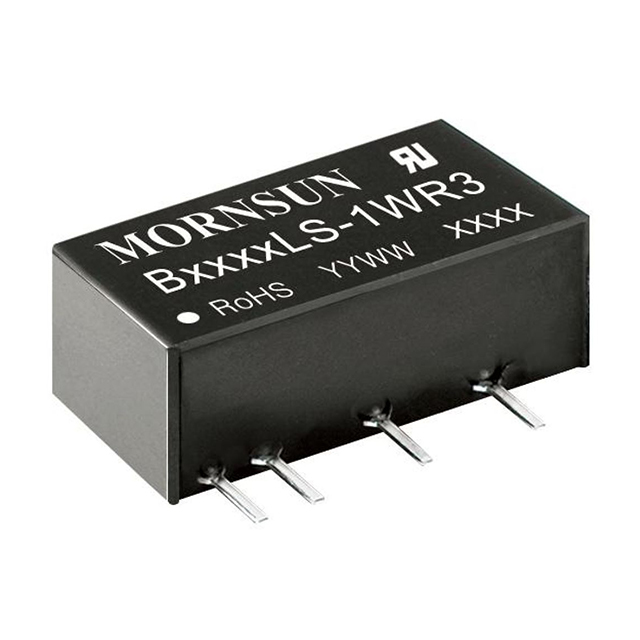

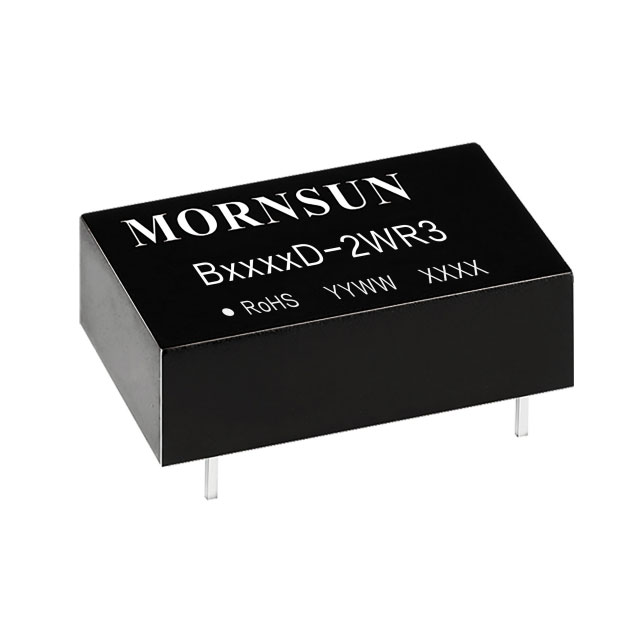

| Part Number | B1224D-1WR3 | B1224D-2WR3 | B1224LS-1WR3 | B1224S-1WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER 24V 1W | DC DC CONVERTER 24V 2W | DC DC CONVERTER 24V 1W | DC DC CONVERTER 24V 1W |
| Series | ||||

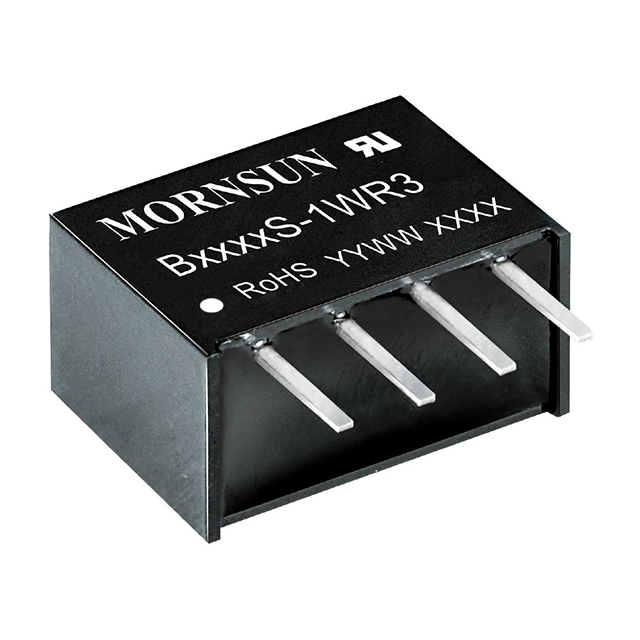

| Packaging | B_D-1WR3 (1W) | B1224D-2WR3 (2W) | B_LS-1WR3 (1W) | B_S-1WR3 (1W) |
