B1501IR--20C000113U1930
lmages are for reference only.B1501IR--20C000113U1930
3.2(L)X1.6(W)X1.85(H) MM IR
Datasheet1206 (3216 Metric)
16,865 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Infrared (IR) Emitter 940nm 1.5V 65mA 0.1mW/sr @ 20mA 140° 1206 (3216 Metric)
B1501IR--20C000113U1930
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | Harvatek Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Base Product Number | - |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 65mA |
| Radiant Intensity (Ie) Min @ If | 0.1mW/sr @ 20mA |
| Wavelength | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 140° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

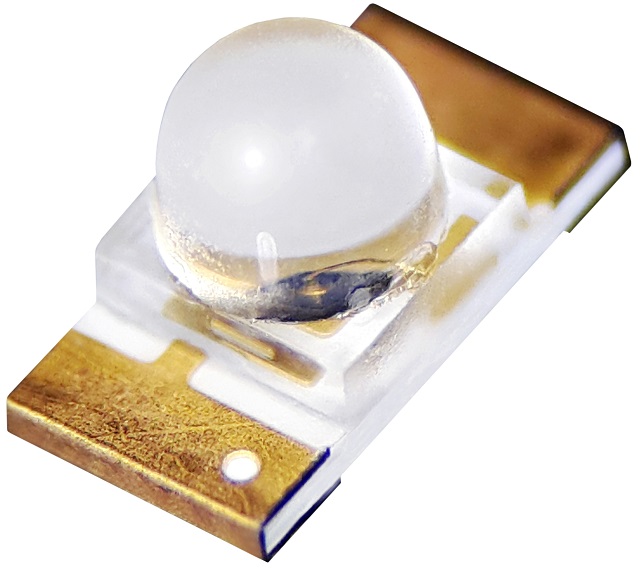

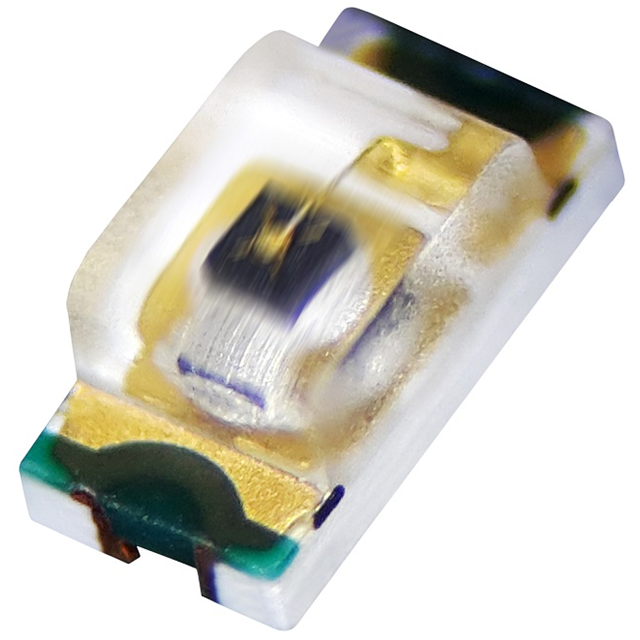

| Part Number | B13V1IR--20C000114U1930 | B1591IRP-20C000252U1930 | B15V1IR--A1C000152U1930 | B15W1IR--20C000112U1930 |
| Manufacturer | Harvatek Corporation | Harvatek Corporation | Harvatek Corporation | Harvatek Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 1.6 (L)X 0. 8 (W)X 0. 66 (H) MM | 3.2(L)X1.6(W)X1.85(H) MM IRP | 3.2(L)X1.6(W)X1.85(H) MM IR | 3.2(L)X1.6(W)X1.85(H) MM IR |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
