Product CatalogPart Number
B1505D-2WR3
Manufacturer
Mornsun America, LLCDescription
DC DC CONVERTER 5V 2W
Datasheet
DatasheetPackage
14-DIP Module, 5 Leads
In Stock
98,410 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
B1505D-2WR3
B1505D-2WR3
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 400mA 13.5V - 16.5V Input
Quick Inquiry
B1505D-2WR3
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 400mA |
| Power (Watts) | 2 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 79% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module, 5 Leads |
| Size / Dimension | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

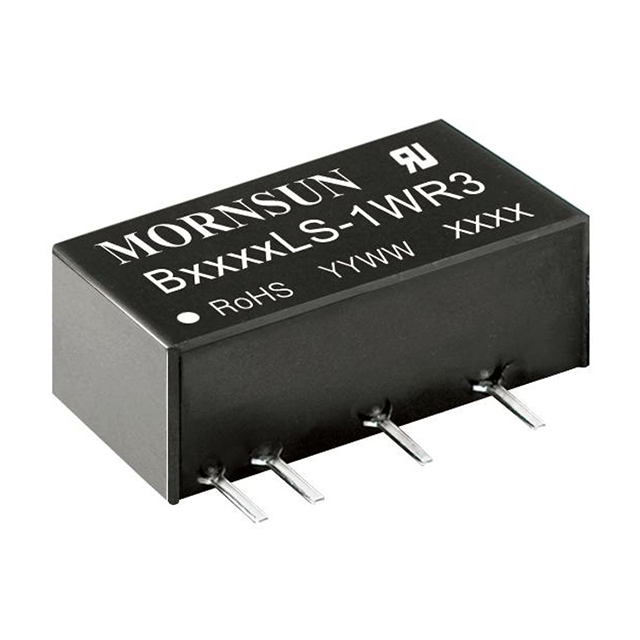

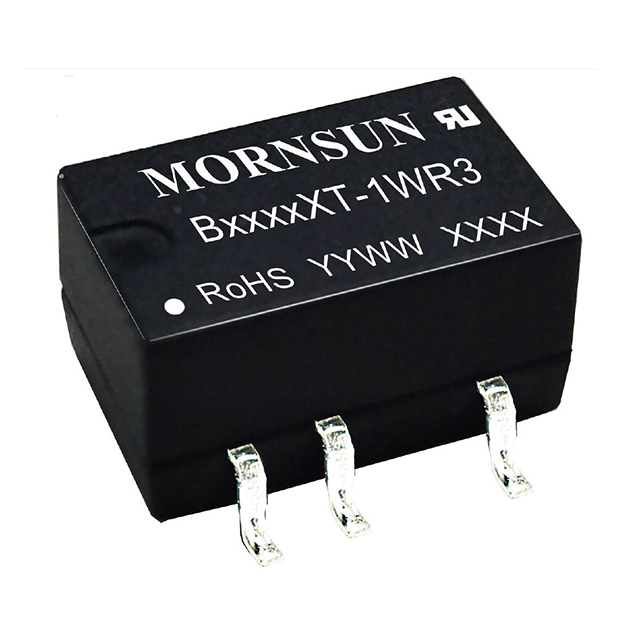

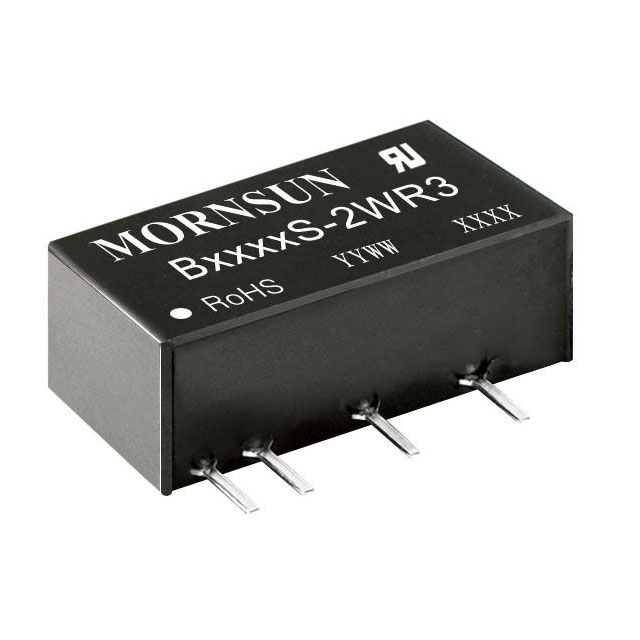

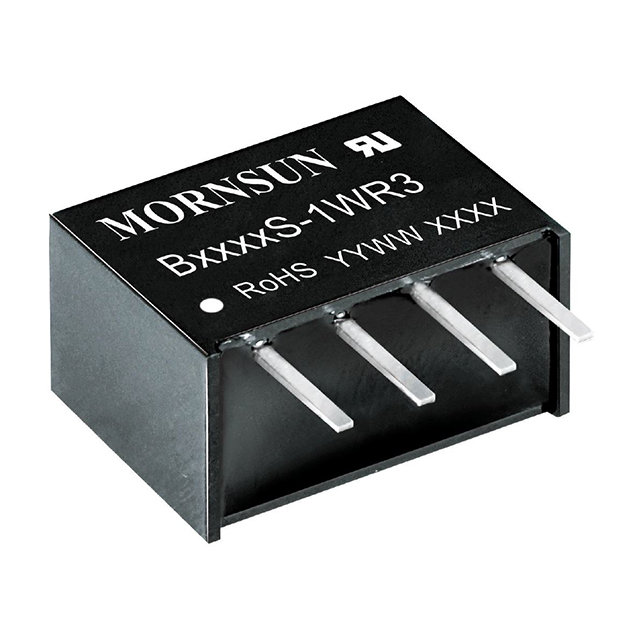

| Part Number | B1505LS-1WR3 | B1505S-1WR3 | B1505S-2WR3 | B1505XT-1WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 1W | DC DC CONVERTER 5V 1W | DC DC CONVERTER 5V 2W | DC DC CONVERTER 5V 1W |
| Series | ||||
| Packaging | B_LS-1WR3 (1W) | B_S-1WR3 (1W) | B1505S-2WR3 (2W) | B_XT-1WR3 (1W) |
