B15W1PD--H9B000112U1930
lmages are for reference only.B15W1PD--H9B000112U1930
SENSOR PHOTODIODE 940NM 1206
Datasheet1206 (3216 Metric)
30,398 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Photodiode 940nm 6ns 1206 (3216 Metric)
B15W1PD--H9B000112U1930
| Category | Sensors, Transducers - Optical Sensors - Photodiodes |
| Manufacturer | Harvatek Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | RoHS Compliant |
| Wavelength | 940nm |
| Color - Enhanced | - |
| Spectral Range | 700nm ~ 1100nm |
| Diode Type | - |
| Responsivity @ nm | - |
| Response Time | 6ns |
| Voltage - DC Reverse (Vr) (Max) | 32 V |
| Current - Dark (Typ) | 10nA |
| Active Area | - |
| Viewing Angle | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

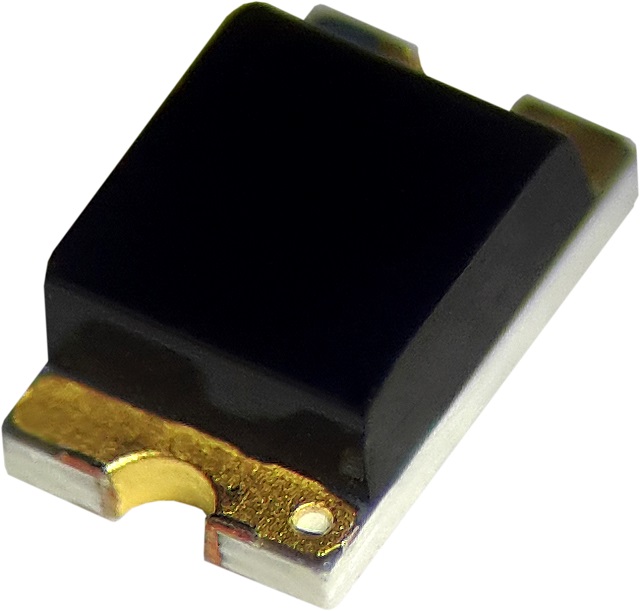

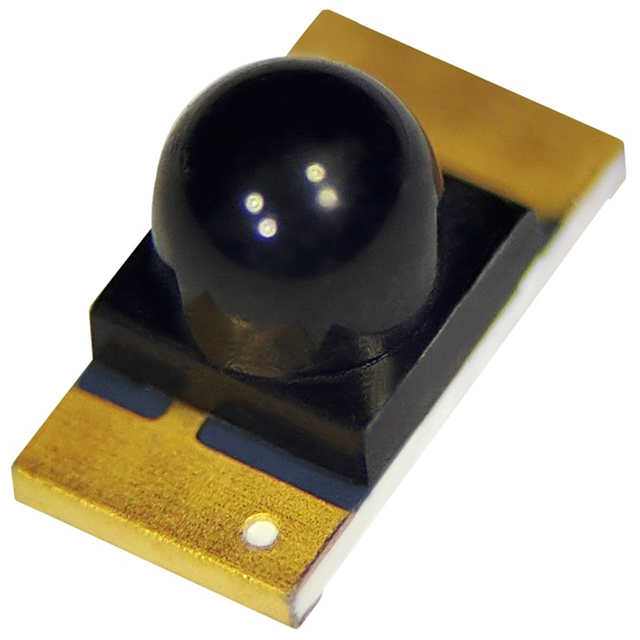

| Part Number | B17M1PD--H9B000114U1930 | B15P1PD--H9C000213U1930 | B1501PD--H9B000113U1930 | B15P1PD--H9B000113U1930 |
| Manufacturer | Harvatek Corporation | Harvatek Corporation | Harvatek Corporation | Harvatek Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR PHOTODIODE 940NM 0805 | SENSOR PHOTODIODE 940NM 1210 | SENSOR PHOTODIODE 940NM 1206 | SENSOR PHOTODIODE 940NM 1210 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
