B25620B1108K323

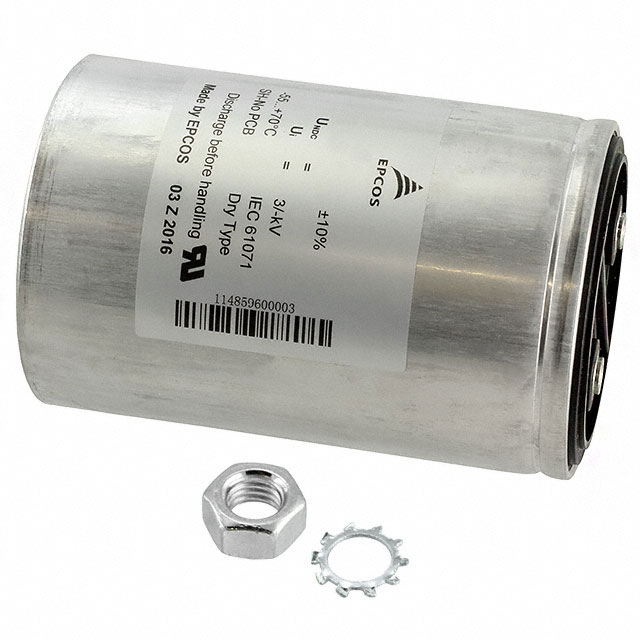

lmages are for reference only.B25620B1108K323
CAP FILM 1000UF 10% 1.32KVDC RAD
DatasheetRadial, Can
91,905 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1000 µF Film Capacitor 1320V (1.32kV) Polypropylene (PP), Metallized Radial, Can
B25620B1108K323
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | MKP DC Link |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1000 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1320V (1.32kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 75°C |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can |
| Size / Dimension | 4.567" Dia (116.00mm) |
| Height - Seated (Max) | 10.984" (279.00mm) |
| Termination | Threaded, Female |
| Lead Spacing | 1.969" (50.00mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B25620B1108K203 | B25620B1107K101 | B25620B1117K981 | B25620B1118K103 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 1000UF 10% 1.2KVDC RAD | CAP FILM 100UF 10% 1.1KVDC RAD | CAP FILM 110UF 10% 1.98KVDC RAD | CAP FILM 1100UF 10% 1.1KVDC RAD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
