B32021A3472K000

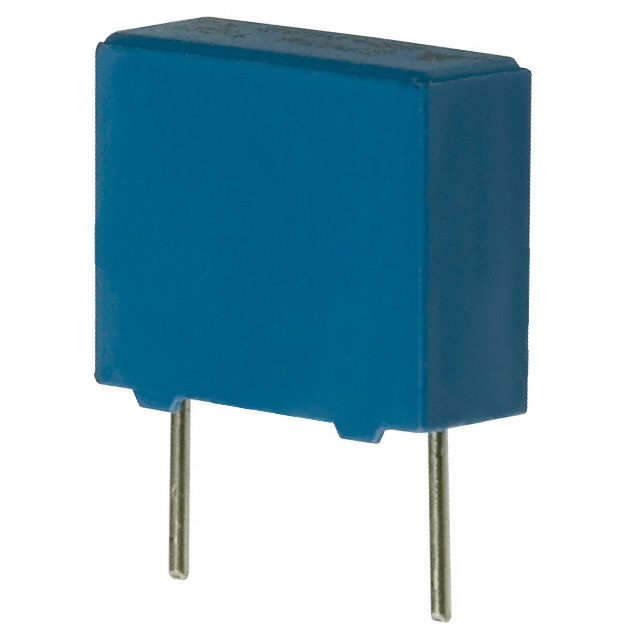

lmages are for reference only.B32021A3472K000
CAP FILM 4700PF 10% 1.5KVDC RAD
DatasheetRadial
57,863 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4700 pF Film Capacitor 300V 1500V (1.5kV) Polypropylene (PP), Metallized Radial
B32021A3472K000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3202* - Y2 Standard |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 4700 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 300V |
| Voltage Rating - DC | 1500V (1.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.197" W (13.00mm x 5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | EMI, RFI Suppression |
| Ratings | Y2 |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B32021A3472K189 | B32021A3472K289 | B32021A3472M000 | B32021A3472M026 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 4700PF 10% 300VAC RAD | CAP FILM 4700PF 10% 1.5KVDC RAD | CAP FILM 4700PF 20% 1.5KVDC RAD | FILM CAP Y2 MKP 4.7NF 20% 300VAC |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Bulk |
