B32377A7306J020

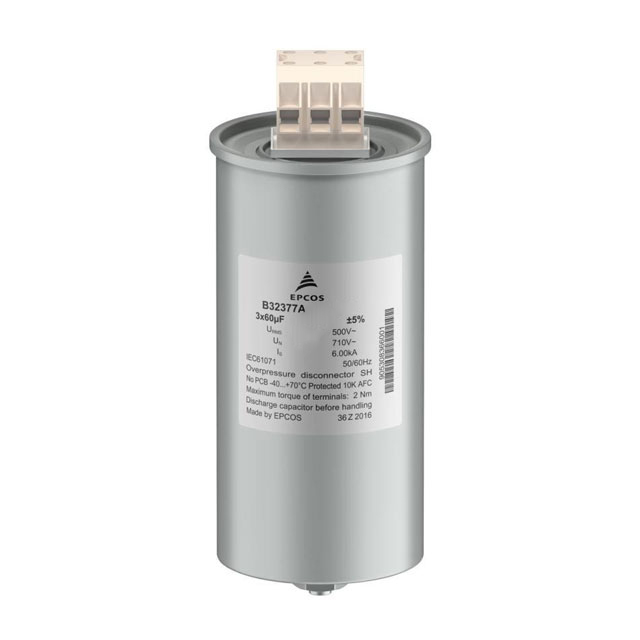

lmages are for reference only.B32377A7306J020
CAP FILM 3X30UF 5% 1.8KVDC RAD
DatasheetRadial, Can
77,125 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30 µF Film Capacitor 720V 1800V (1.8kV) Polypropylene (PP), Metallized Radial, Can
B32377A7306J020
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | MKD AC - Three Phase Delta Connection |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 30 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 720V |
| Voltage Rating - DC | 1800V (1.8kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 70°C |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can |
| Size / Dimension | 3.780" Dia (96.00mm) |
| Height - Seated (Max) | 8.209" (208.50mm) |
| Termination | Terminal Block |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | 3 Phase |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B32377A7356J080 | B32370A3406J030 | B32370A4206J080 | B32370A4306J080 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 3X35UF 5% 1.95KVDC RAD | CAP FILM 40UF 5% 900VDC RADIAL | CAP FILM 20UF 5% 1.2KVDC RADIAL | CAP FILM 30UF 5% 1.2KVDC RADIAL |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
