B32520C0225M289

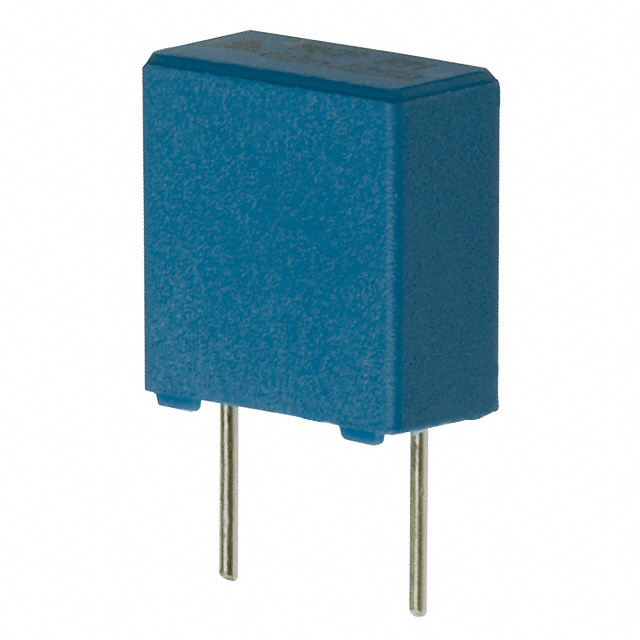

lmages are for reference only.B32520C0225M289
CAP FILM 2.2UF 20% 63VDC RADIAL
DatasheetRadial
94,373 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µF Film Capacitor 40V 63V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
B32520C0225M289
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3252* - MKT General Purpose |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 40V |
| Voltage Rating - DC | 63V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.406" L x 0.236" W (10.30mm x 6.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200 |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B32520C0225M000 | B32520C0225J000 | B32520C0225K000 | B32520C0225K189 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 2.2UF 20% 63VDC RADIAL | CAP FILM 2.2UF 5% 63VDC RADIAL | CAP FILM 2.2UF 10% 63VDC RADIAL | CAP FILM 2.2UF 10% 63VDC RADIAL |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
