Product CatalogPart Number
B32560J8102K189
Manufacturer
EPCOS - TDK ElectronicsDescription
CAP FILM 1000PF 10% 630VDC 2DIP
Datasheet
DatasheetPackage
2-DIP
In Stock
76,869 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
B32560J8102K189
B32560J8102K189

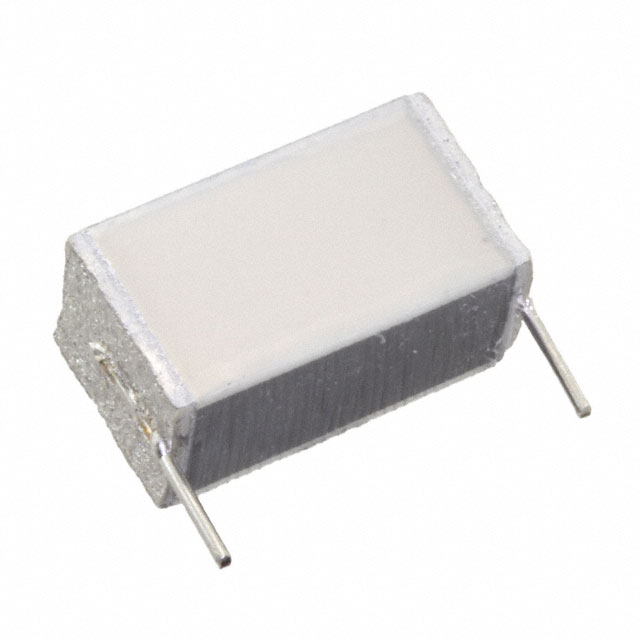

lmages are for reference only.Payment Methods
Delivery Services
1000 pF Film Capacitor 400V 630V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked 2-DIP
Quick Inquiry
B32560J8102K189
Specifications
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3256* - MKT SilverCap™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1000 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 2-DIP |
| Size / Dimension | 0.354" L x 0.098" W (9.00mm x 2.50mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | B32560J8102K000 | B32560J8102K289 | B32560J8102J000 | B32560J8103J000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 1000PF 10% 630VDC 2DIP | CAP FILM 1000PF 10% 630VDC 2DIP | CAP FILM 1000PF 5% 630VDC 2DIP | CAP FILM 10000PF 5% 630VDC 2DIP |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Tape & Box (TB) | Bulk | Bulk |
