B32621A5224J000

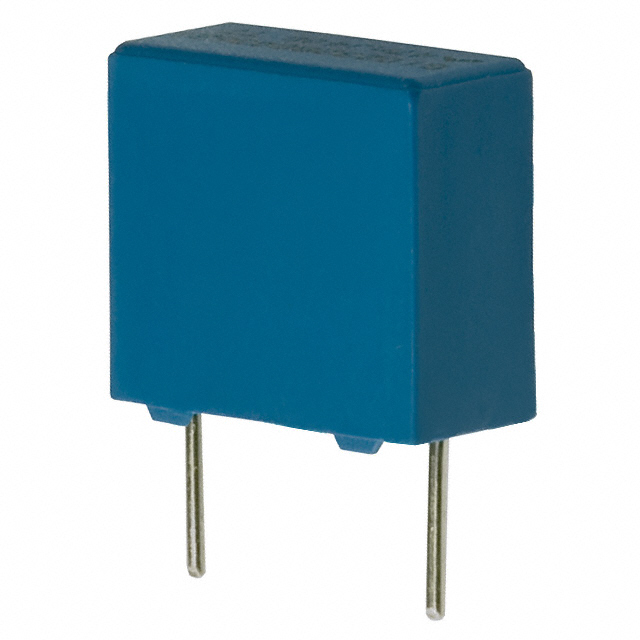

lmages are for reference only.B32621A5224J000
CAP FILM 0.22UF 5% 160VDC RADIAL
DatasheetRadial
19,497 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.22 µF Film Capacitor 90V 160V Polypropylene (PP), Metallized - Stacked Radial
B32621A5224J000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3262* - MKP High Pulse (stacked) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.22 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 90V |
| Voltage Rating - DC | 160V |
| Dielectric Material | Polypropylene (PP), Metallized - Stacked |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.236" W (13.00mm x 6.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | B32621A5224J000 | B32621A5224J189 | B32621A5224J289 | B32621A5224K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.22UF 5% 160VDC RADIAL | CAP FILM 0.22UF 5% 160VDC RADIAL | CAP FILM 0.22UF 5% 160VDC RADIAL | CAP FILM 0.22UF 10% 160VDC RAD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Box (TB) | Bulk |
