B32654A4225J189

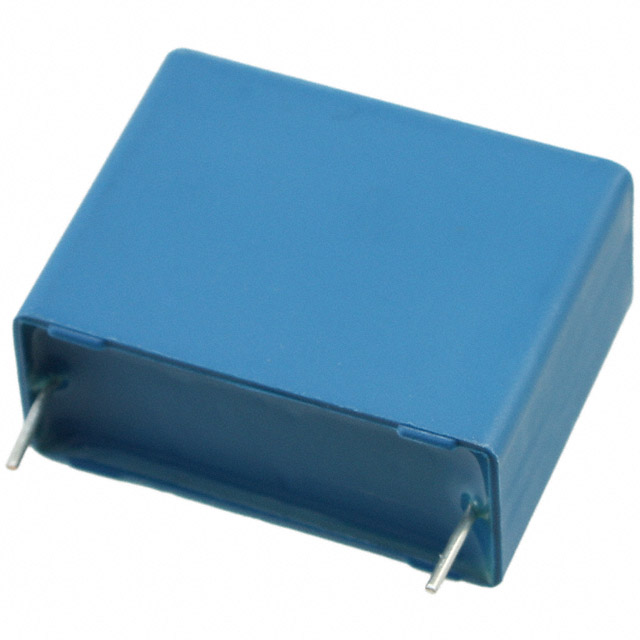

lmages are for reference only.B32654A4225J189
CAP FILM 2.2UF 5% 400VDC RADIAL
DatasheetRadial
87,234 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 µF Film Capacitor 200V 400V Polypropylene (PP), Metallized Radial
B32654A4225J189
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3265* - MKP General Purpose |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 2.2 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 200V |
| Voltage Rating - DC | 400V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.551" W (31.50mm x 14.00mm) |
| Height - Seated (Max) | 0.965" (24.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering; High Pulse, DV/DT; Snubber |
| Ratings | AEC-Q200 |
| Features | Low ESL |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B32654A4225J000 | B32654A4225K000 | B32654A4225K189 | B32651A7222J000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 2.2UF 5% 400VDC RADIAL | CAP FILM 2.2UF 10% 400VDC RADIAL | CAP FILM 2.2UF 10% 400VDC RADIAL | CAP FILM 2200PF 5% 1.25KVDC RAD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
