B32656S1474K562

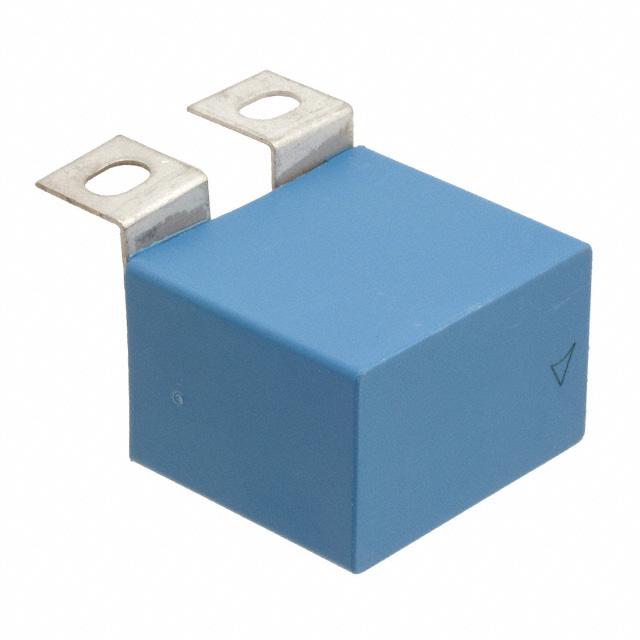

lmages are for reference only.B32656S1474K562
CAP FILM 0.47UF 10% 1.7KVDC SCRW
DatasheetRectangular Box
93,883 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.47 µF Film Capacitor 750V 1700V (1.7kV) Polypropylene (PP), Metallized Rectangular Box
B32656S1474K562
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3265* - MKP General Purpose |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.47 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 750V |
| Voltage Rating - DC | 1700V (1.7kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 1.102" W (42.00mm x 28.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 0.866" (22.00mm) |
| Applications | Snubber |
| Ratings | AEC-Q200 |
| Features | Low ESL |
| ESR (Equivalent Series Resistance) | 6 mOhms |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | B32656S1474K561 | B32656S1474K562 | B32656S1474K566 | B32651A7222J000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.47UF 10% 1.7KVDC SCRW | CAP FILM 0.47UF 10% 1.7KVDC SCRW | CAP FILM 0.47UF 10% 1.7KVDC SCRW | CAP FILM 2200PF 5% 1.25KVDC RAD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
