B32656S2564K561
lmages are for reference only.B32656S2564K561
FILM CAP 0.5600UF 10% 2000V MKP
DatasheetRectangular Box
94,464 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.56 µF Film Capacitor 800V 2000V (2kV) Polypropylene (PP), Metallized Rectangular Box
B32656S2564K561
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B32656S |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.56 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 800V |
| Voltage Rating - DC | 2000V (2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.693" L x 1.299" W (43.00mm x 33.00mm) |
| Height - Seated (Max) | 1.890" (48.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | - |
| Applications | High Pulse, DV/DT; Snubber |
| Ratings | - |
| Features | Low ESL |
| ESR (Equivalent Series Resistance) | 4.5 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

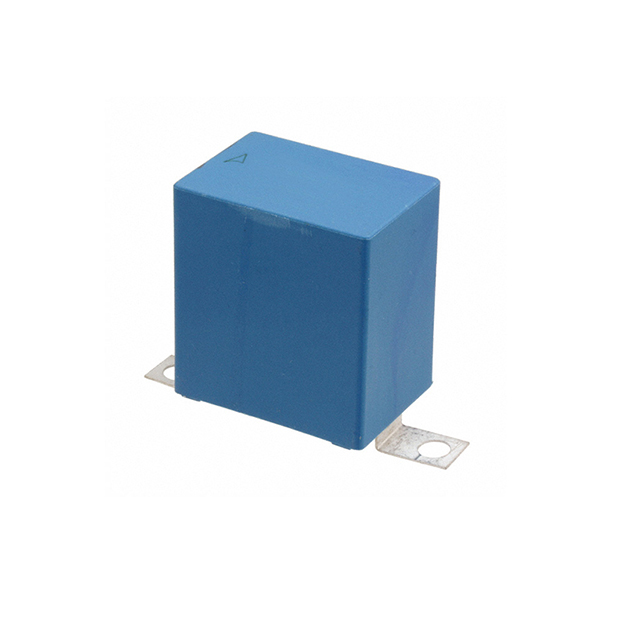

| Part Number | B32656S2564K410 | B32656S2564K566 | B32651A7222J000 | B32651A7222K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FILM CAP 0.5600UF 10% 2000V MKP | FILM CAP 0.5600UF 10% 2000V MKP | CAP FILM 2200PF 5% 1.25KVDC RAD | CAP FILM 2200PF 10% 1.25KVDC RAD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
