B32656S7155K566

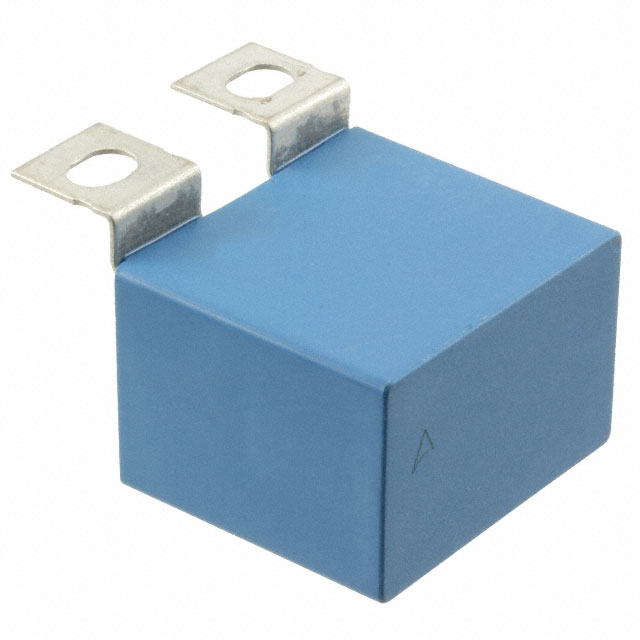

lmages are for reference only.B32656S7155K566
CAP FILM 1.5UF 10% 1.25KVDC SCRW
DatasheetRectangular Box
69,942 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5 µF Film Capacitor 500V 1250V (1.25kV) Polypropylene (PP), Metallized Rectangular Box
B32656S7155K566
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3265* - MKP General Purpose |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1.5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1250V (1.25kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Chassis Mount |
| Package / Case | Rectangular Box |
| Size / Dimension | 1.654" L x 1.181" W (42.00mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | Screw Terminals |
| Lead Spacing | 0.945" (24.00mm) |
| Applications | Snubber |
| Ratings | AEC-Q200 |
| Features | Low ESL |
| ESR (Equivalent Series Resistance) | 4 mOhms |
| Base Product Number | - |
| Product Attribute | |
|
|
 |
| Part Number | B32656S7155K577 | B32656S7105J561 | B32656S7105J563 | B32656S7105K561 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 1.5UF 10% 1.25KVDC SCRW | CAP FILM 1UF 5% 1.25KVDC SCREW | CAP FILM 1UF 5% 1.25KVDC SCREW | CAP FILM 1UF 10% 1.25KVDC SCREW |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
