B32671L0562J000

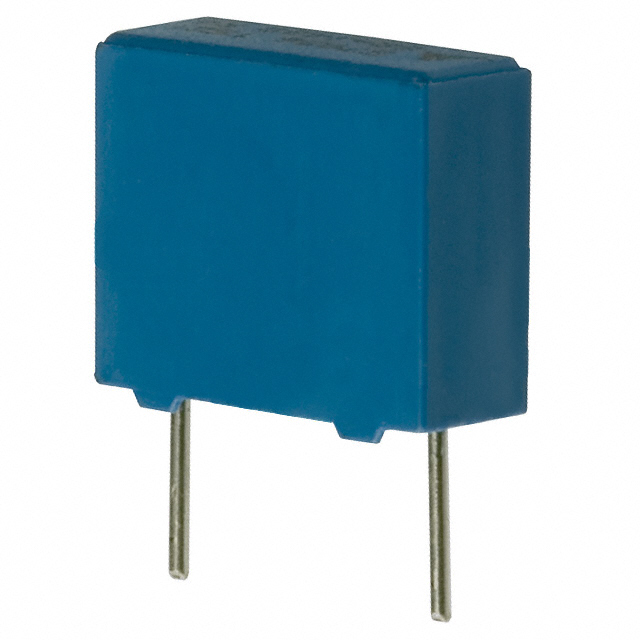

lmages are for reference only.B32671L0562J000
CAP FILM 5600PF 5% 1KVDC RADIAL
DatasheetRadial
60,942 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5600 pF Film Capacitor 500V 1000V (1kV) Polypropylene (PP), Metallized Radial
B32671L0562J000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3267*L* - MKP High Current |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 5600 pF |
| Tolerance | ±5% |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.197" W (13.00mm x 5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B32671L0562K000 | B32671L0103J000 | B32671L0103J189 | B32671L0103J289 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 5600PF 10% 1KVDC RADIAL | CAP FILM 10000PF 5% 1KVDC RADIAL | CAP FILM 10000PF 5% 1KVDC RADIAL | CAP FILM 10000PF 5% 1KVDC RADIAL |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Cut Tape (CT)-->Tape & Box (TB) |
