B32672L1153J000
lmages are for reference only.B32672L1153J000
CAP FILM 0.015UF 5% 1.6KVDC RAD
DatasheetRadial
80,200 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.015 µF Film Capacitor 600V 1600V (1.6kV) Polypropylene (PP), Metallized Radial
B32672L1153J000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3267*L* - MKP High Current |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.015 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.276" W (18.00mm x 7.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | High Frequency, Switching; High Pulse, DV/DT |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

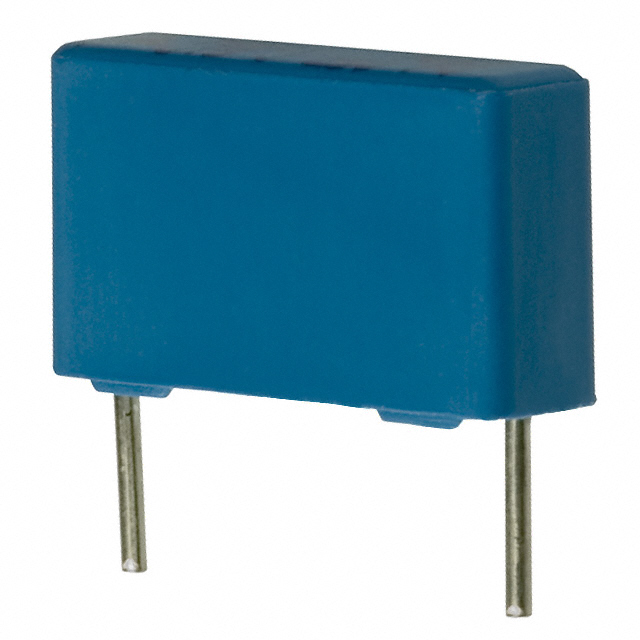

| Part Number | B32672L1103J000 | B32672L1103J189 | B32672L1103K000 | B32672L1103K289 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 10000PF 5% 1.6KVDC RAD | CAP FILM 10000PF 5% 1.6KVDC RAD | CAP FILM 10000PF 10% 1.6KVDC RAD | CAP FILM 10000PF 10% 1.6KVDC RAD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Tape & Box (TB) |
