B32683A3332K000
lmages are for reference only.B32683A3332K000
CAP FILM 3300PF 10% 2.5KVDC RAD
DatasheetRadial
50,152 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3300 pF Film Capacitor 750V 2500V (2.5kV) Polypropylene (PP), Metallized Radial
B32683A3332K000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3268* - MFP Very High Pulse |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 3300 pF |
| Tolerance | ±10% |
| Voltage Rating - AC | 750V |
| Voltage Rating - DC | 2500V (2.5kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.335" W (26.50mm x 8.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | High Pulse, DV/DT; Snubber |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

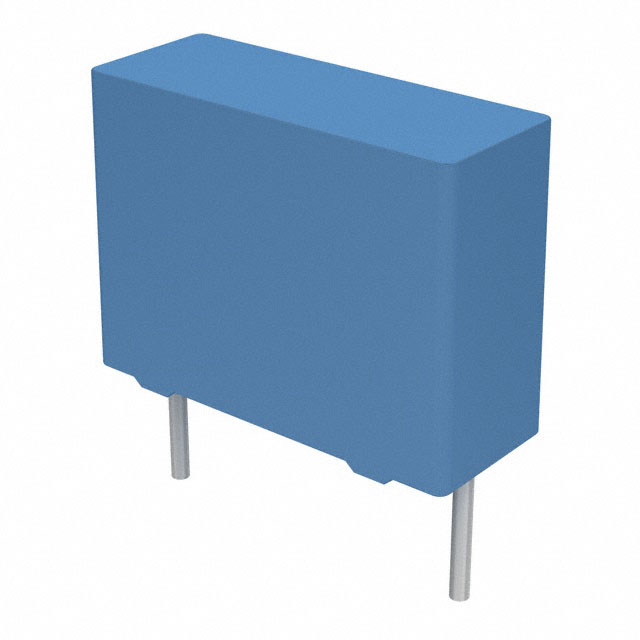

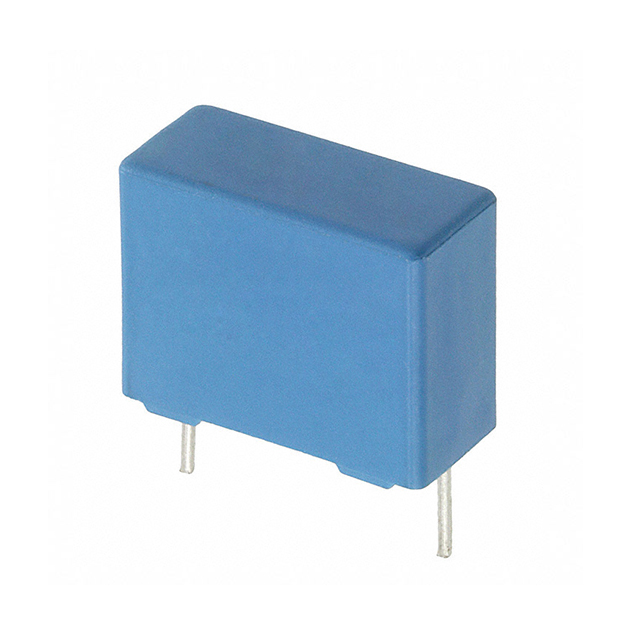

| Part Number | B32682A0103K000 | B32682A0332K000 | B32682A0682K000 | B32682A1103J000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 10000PF 10% 1KVDC RAD | CAP FILM 3300PF 10% 1KVDC RADIAL | CAP FILM 6800PF 10% 1KVDC RADIAL | CAP FILM 10000PF 5% 1.6KVDC RAD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
