B32714H0505K000
lmages are for reference only.B32714H0505K000
MKP DC FILTERING - 1000VDC, 5F 1
DatasheetRadial
67,065 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5 µF Film Capacitor 1000V (1kV) Polypropylene (PP), Metallized Radial
B32714H0505K000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B32714H |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.240" L x 0.709" W (31.50mm x 18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive |
| Ratings | AEC-Q200 |
| Features | Long Life |
| ESR (Equivalent Series Resistance) | 6.7 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

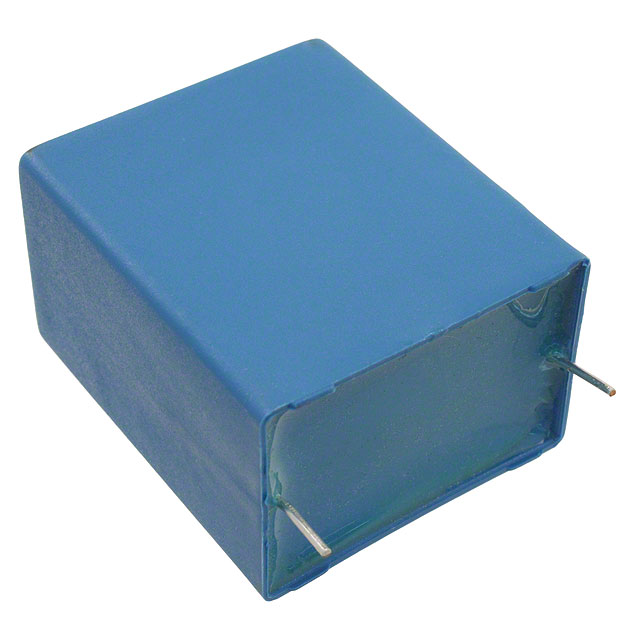

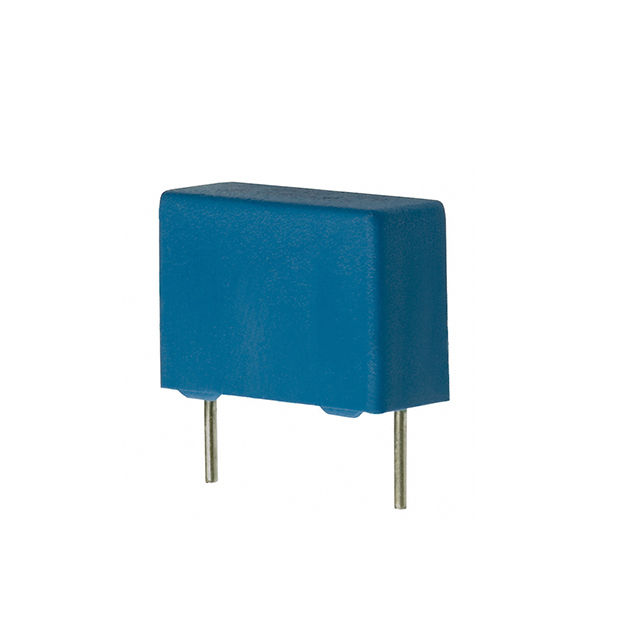

| Part Number | B32714H0705J000 | B32714H0805K000 | B32714H1205K000 | B32714H1305K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MKP DC FILTERING - 1000VDC, 7F 5 | MKP DC FILTERING - 1000VDC, 8F 1 | MKP DC FILTERING - 1100VDC, 2UF | MKP DC FILTERING - 1100VDC, 3F 1 |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
