B32921C3223K000
lmages are for reference only.B32921C3223K000
CAP FILM 0.022UF 10% 630VDC RAD
DatasheetRadial
13,641 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.022 µF Film Capacitor 305V 630V Polypropylene (PP) Radial
B32921C3223K000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3292*C/D - X2 Standard |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.022 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 305V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP) |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.512" L x 0.157" W (13.00mm x 4.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X2 |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

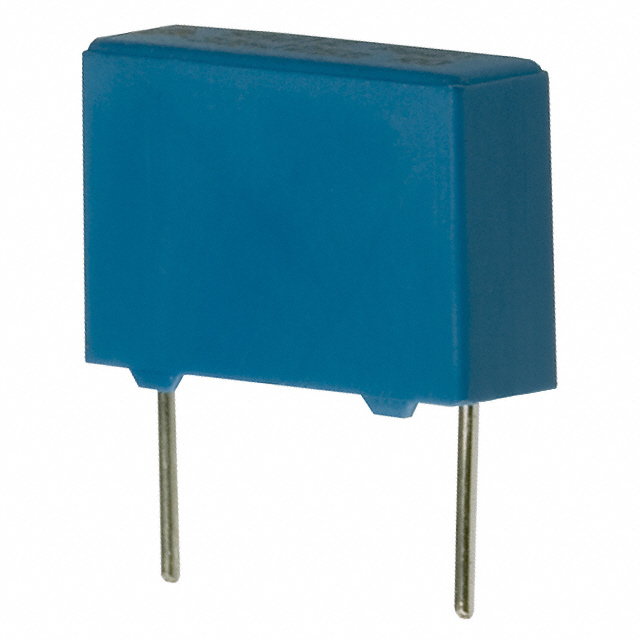

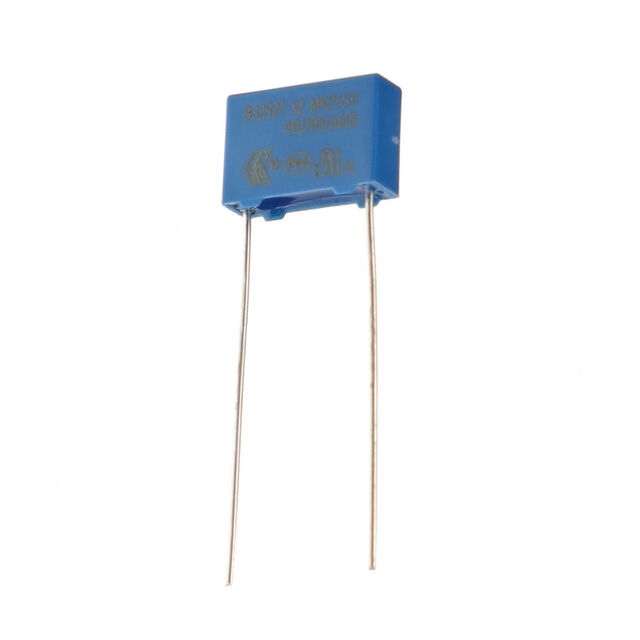

| Part Number | B32921C3223K189 | B32921C3223K289 | B32921C3223M000 | B32921C3223M026 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.022UF 10% 630VDC RAD | CAP FILM 0.022UF 10% 630VDC RAD | CAP FILM 0.022UF 20% 630VDC RAD | FILM CAP MKP X2 0.022UF 20% 305V |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR) | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Bulk |
