B39921B2616P810

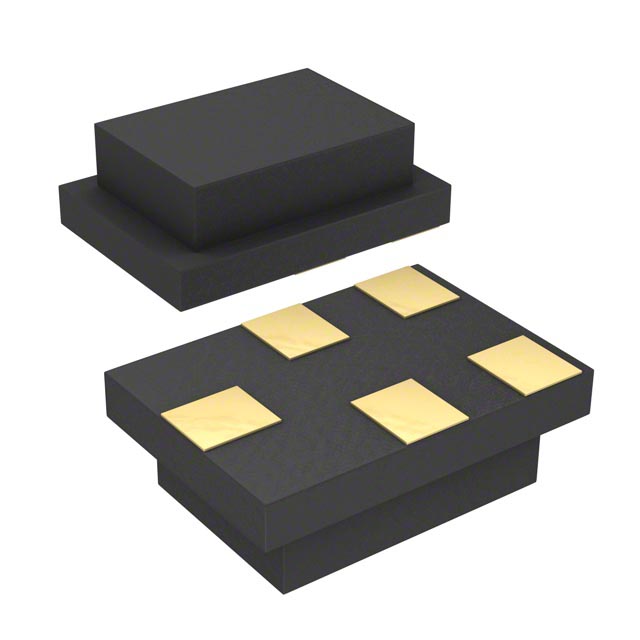

lmages are for reference only.B39921B2616P810
SUB-1-GHZ SAW FILTER, FC=924.5 M
Datasheet5-SMD, No Lead
46,012 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
924.5MHz Frequency ISM RF SAW Filter (Surface Acoustic Wave) 2.1dB 5MHz Bandwidth 5-SMD, No Lead
B39921B2616P810
| Category | Filters - SAW Filters - |
| Manufacturer | Qualcomm (RF front-end (RFFE) filters) |
| Series | B2616 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Bandwidth | 5MHz |
| Insertion Loss | 2.1dB |
| Ratings | AEC-Q200 |
| Applications | ISM |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD, No Lead |
| Height (Max) | 0.018" (0.45mm) |
| Size / Dimension | 0.055" L x 0.043" W (1.40mm x 1.10mm) |
| Frequency - Center | 924.5MHz |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B39921B2615P810 | B39921B2619P810 | B39921B2625P810 | B39921B2671P810 |
| Manufacturer | Qualcomm (RF front-end (RFFE) filters) | Qualcomm (RF front-end (RFFE) filters) | Qualcomm (RF front-end (RFFE) filters) | Qualcomm (RF front-end (RFFE) filters) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SUB-1-GHZ SAW FILTER, FC=921.5 M | SUB-1-GHZ SAW FILTER, FC=922.5 M | SAW FILTER | CSSP3 GT |
| Series | B2615 | B2619 | B2625 | B2672 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
