B40940A8127M000
lmages are for reference only.B40940A8127M000
CAP ALUMHYB 120UF 20% 63V SMD
DatasheetRadial, Can - SMD
38,398 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 22mOhm 4000 Hrs @ 145°C
B40940A8127M000
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B40940 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Hybrid |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 145°C |
| Operating Temperature | -40°C ~ 145°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.4 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.504" (12.80mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B40940A8826M000 | B40940B8107M000 | PCL1A680MCL1GS | HHXE160ARA471MJA0G |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | Nichicon | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

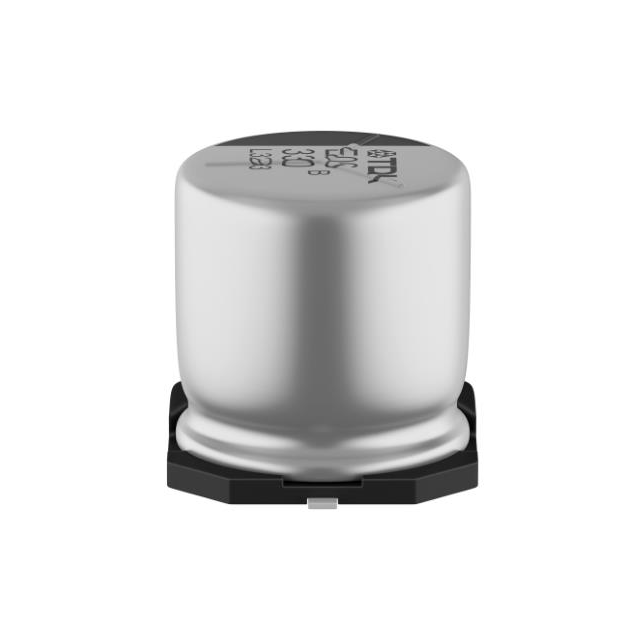

| Description | CAP ALUM HYBRID 82UF 20% 63V SMD | CAP ALUMHYB 100UF 20% 63V SMD | CAP ALUM POLY 68UF 20% 10V SMD | CAP ALUMHYB 470UF 20% 16V SMD |
| Series | B40940 | B40940 | PCL | HXE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
