B41554B9229Q000

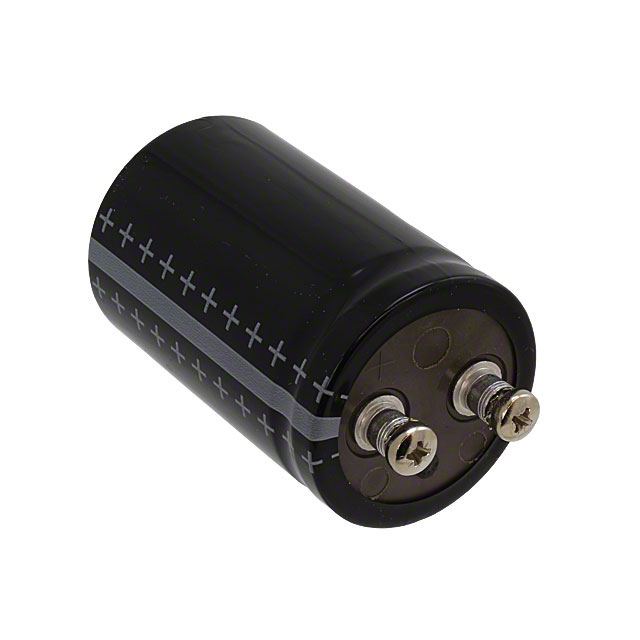

lmages are for reference only.B41554B9229Q000
CAP ALUM 22000UF 100V SCREW CHAS
DatasheetRadial, Can - Screw Terminals
38,364 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22000 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 11mOhm @ 100Hz 5000 Hrs @ 125°C
B41554B9229Q000
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B41554 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 11mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | 9 mOhms |
| Product Attribute | |
|
 |
|
| Part Number | B41550A4220Q000 | B41550A5150Q000 | B41550A5688Q000 | B41550A7100Q000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 220000UF 16V SCREW CHAS | CAP ALUM 150000UF 25V SCREW CHAS | CAP ALUM 6800UF 25V SCREW CHAS M | CAP ALUM 100000UF 40V SCREW CHAS |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
