B43640A2108M007

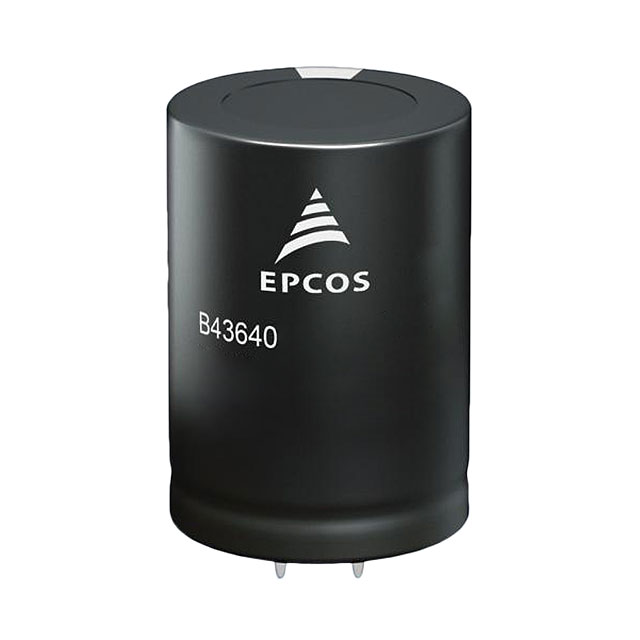

lmages are for reference only.B43640A2108M007
CAP ALUM 1000UF 20% 200V SNAP TH
DatasheetRadial, Can - Snap-In
38,071 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1000 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 90mOhm @ 100Hz 2000 Hrs @ 105°C
B43640A2108M007
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B43640 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 90mOhm @ 100Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.39 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | 130 mOhms |
| Product Attribute | |
 |
 |
 |
| Part Number | B43640A2108M007 | B43640A2158M000 | B43640A2228M000 | B43640A2278M000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 1000UF 20% 200V SNAP TH | CAP ALUM 1500UF 20% 200V SNAP TH | CAP ALUM 2200UF 20% 200V SNAP TH | CAP ALUM 2700UF 20% 200V SNAP TH |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
