B72260B0681K001

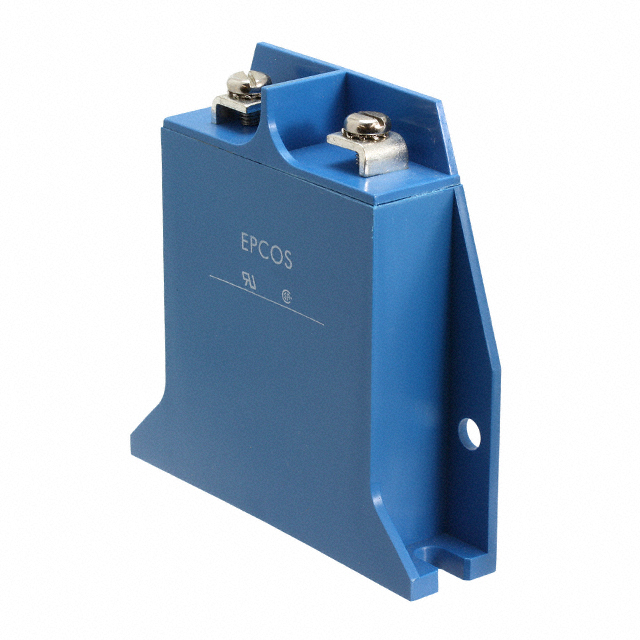

lmages are for reference only.B72260B0681K001
VARISTOR 1.1KV 70KA ENCASED DISC
DatasheetEncased Disc
61,860 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.1 kV 70 kA Varistor 1 Circuit Chassis Mount Encased Disc
B72260B0681K001
| Category | Circuit Protection - Varistors-MOVs - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | HighE |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Maximum AC Volts | 680 V |
| Maximum DC Volts | 895 V |
| Varistor Voltage (Min) | 990 V |
| Varistor Voltage (Typ) | 1.1 kV |
| Varistor Voltage (Max) | 1.21 kV |
| Current - Surge | 70 kA |
| Energy | 1800J |
| Number of Circuits | 1 |
| Capacitance @ Frequency | 3300 pF @ 1 kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Chassis Mount |
| Package / Case | Encased Disc |
| Features | - |
| Grade | - |
| Qualification | - |
| Base Product Number | B72260B |
| Product Attribute |  |
 |
 |
 |

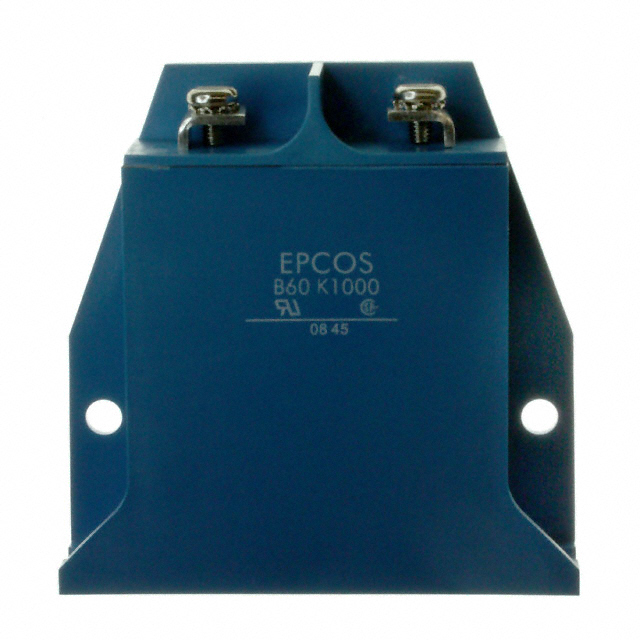

| Part Number | B72260B0102K001 | B72260B0131K001 | B72260B0151K001 | B72260B0231K001 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VARISTOR 1.8KV 70KA ENCASED DISC | VARISTOR 205V 70KA ENCASED DISC | VARISTOR 240V 70KA ENCASED DISC | VARISTOR 360V 70KA ENCASED DISC |
| Series | HighE | HighE | HighE | HighE |
| Packaging | Bulk | Bulk | Bulk | Bulk |
