Product CatalogPart Number
B78108E1101M009
Manufacturer
EPCOS - TDK ElectronicsDescription
FIXED IND 100NH 7.3A 15 MOHM TH
Datasheet
DatasheetPackage
Axial
In Stock
27,474 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
B78108E1101M009
B78108E1101M009
lmages are for reference only.Payment Methods
Delivery Services
100 nH Unshielded Drum Core, Wirewound Inductor 7.3 A 15mOhm Max Axial
Quick Inquiry
B78108E1101M009
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B78108E |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.3 A |
| Current - Saturation (Isat) | 17A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 15mOhm Max |
| Q @ Freq | 50 @ 7.96MHz |
| Frequency - Self Resonant | 700MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | - |
| Size / Dimension | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | B78108E1101M000 | B78108E1102K000 | B78108E1102K009 | B78108E1103K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100NH 7.3A 15 MOHM TH | FIXED IND 1UH 4.15A 38 MOHM TH | FIXED IND 1UH 4.15A 38 MOHM TH | FIXED IND 10UH 2.25A 136 MOHM TH |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT)-->Tape & Box (TB) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
B78108E1101M000
EPCOS - TDK Electronics
B78108E1102K000
EPCOS - TDK Electronics
B78108E1102K009
EPCOS - TDK Electronics
B78108E1103K000
EPCOS - TDK Electronics
B78108E1103K009
EPCOS - TDK Electronics
B78108E1104J000
EPCOS - TDK Electronics
B78108E1104J009
EPCOS - TDK Electronics
B78108E1151M000
EPCOS - TDK Electronics
B78108E1151M009
EPCOS - TDK Electronics
B78108E1152K000
EPCOS - TDK Electronics
B78108E1152K009
EPCOS - TDK Electronics
B78108E1153K009
EPCOS - TDK Electronics
B78108E1221M000
EPCOS - TDK Electronics
B78108E1221M009
EPCOS - TDK Electronics
B78108E1222K000
EPCOS - TDK Electronics
B78108E1222K009
EPCOS - TDK Electronics

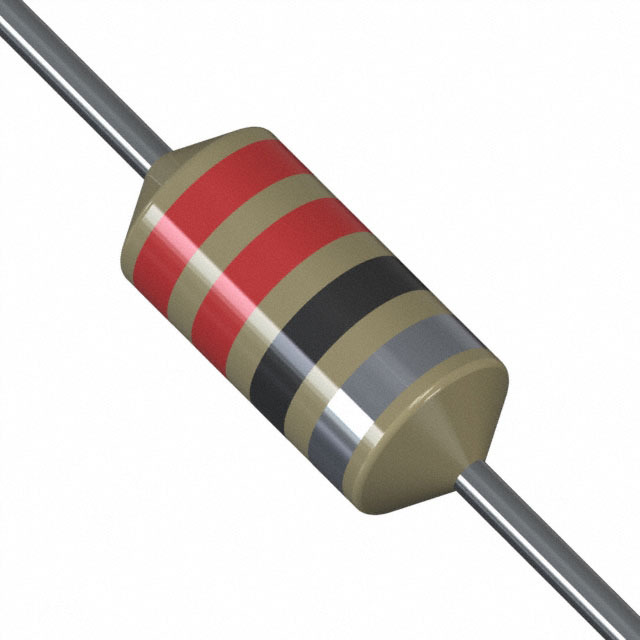

B78108E1223K000
