B82144B1104J000
lmages are for reference only.B82144B1104J000
FIXED IND 100UH 760MA 700MOHM TH
DatasheetRadial, Vertical Cylinder
63,149 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µH Unshielded Drum Core, Wirewound Inductor 760 mA 700mOhm Max Radial, Vertical Cylinder
B82144B1104J000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | LBC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 760 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 700mOhm Max |
| Q @ Freq | 40 @ 796kHz |
| Frequency - Self Resonant | 5.2MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.256" Dia (6.50mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Base Product Number | - |
| Product Attribute |  |  |  |  |

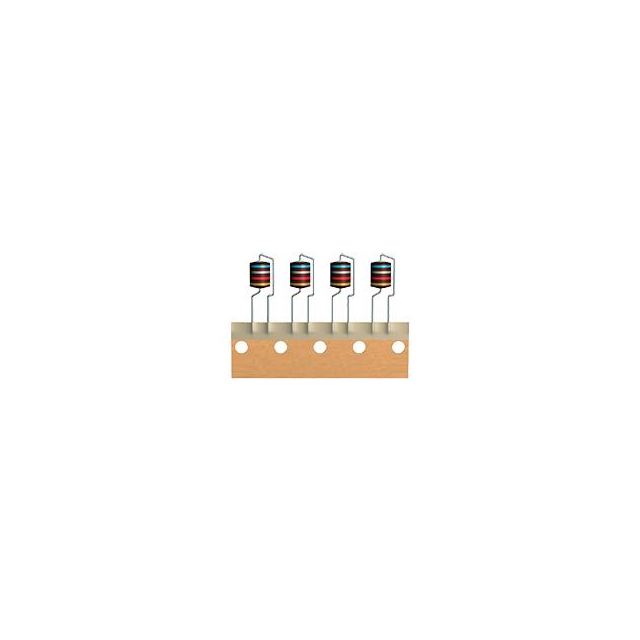

| Part Number | B82144B1102K000 | B82144B1103K000 | B82144B1105J000 | B82144B1106J000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 2.5A 60 MOHM TH | FIXED IND 10UH 1.5A 180 MOHM TH | FIXED IND 1MH 280MA 4.2 OHM TH | FIXED IND 10MH 85MA 42 OHM TH |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
