B82442T1224K000

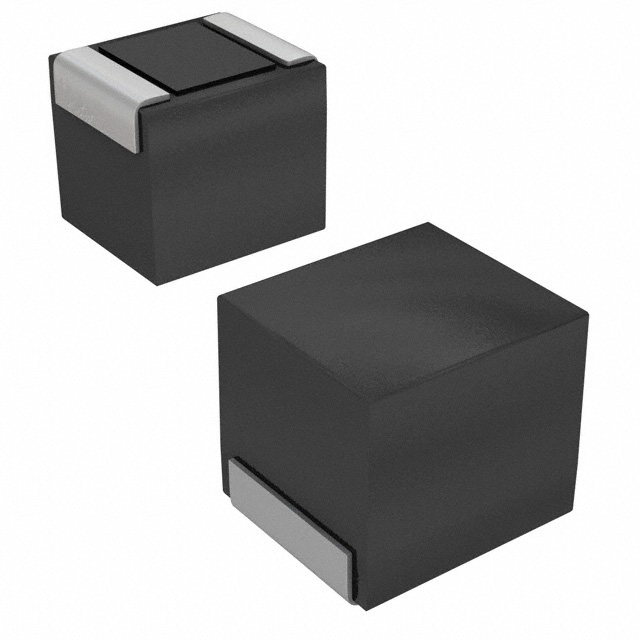

lmages are for reference only.B82442T1224K000
FIXED IND 220UH 330MA 2.21OHM SM
Datasheet2-SMD, J-Lead
45,124 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 µH Unshielded Drum Core, Wirewound Inductor 330 mA 2.21Ohm Max 2-SMD, J-Lead
B82442T1224K000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | SIMID |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 220 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 330 mA |
| Current - Saturation (Isat) | 640mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.21Ohm Max |
| Q @ Freq | 20 @ 796kHz |
| Frequency - Self Resonant | 3.9MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B82442T1224K050 | B82442T1222K000 | B82442T1222M050 | B82442T1223K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 220UH 330MA 2.21OHM SM | FIXED IND 2.2UH 2.71A 38MOHM SMD | FIXED IND 2.2UH 2.71A 38MOHM SMD | FIXED IND 22UH 1.04A 238MOHM SMD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
