B82442T1562K000

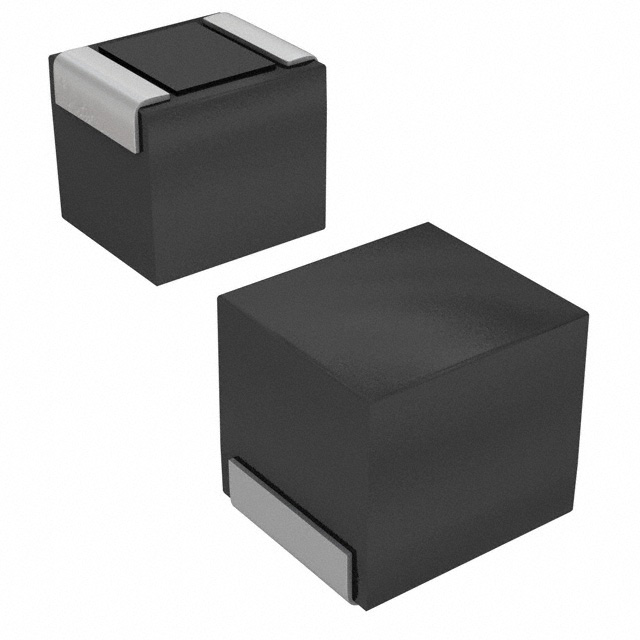

lmages are for reference only.B82442T1562K000
FIXED IND 5.6UH 1.85A 78MOHM SMD
Datasheet2-SMD, J-Lead
39,310 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.6 µH Unshielded Drum Core, Wirewound Inductor 1.85 A 78mOhm Max 2-SMD, J-Lead
B82442T1562K000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | SIMID |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 5.6 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.85 A |
| Current - Saturation (Isat) | 4.1A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 78mOhm Max |
| Q @ Freq | 15 @ 7.96MHz |
| Frequency - Self Resonant | 28MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | B82442T1562K000 | B82442T1563K000 | B82442T1563K050 | B82442T1563K050 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 5.6UH 1.85A 78MOHM SMD | FIXED IND 56UH 600MA 679MOHM SMD | FIXED IND 56UH 600MA 679MOHM SMD | FIXED IND 56UH 600MA 679MOHM SMD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
