B82442T1824K000

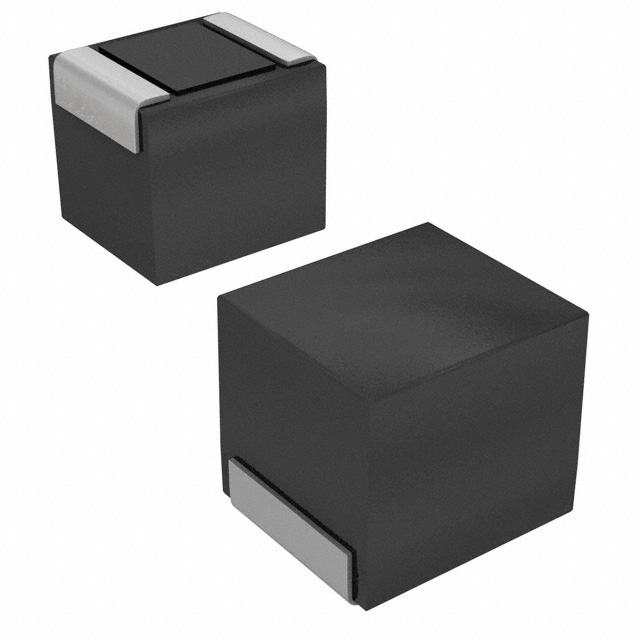

lmages are for reference only.B82442T1824K000
FIXED IND 820UH 170MA 7.86OHM SM
Datasheet2-SMD, J-Lead
16,068 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
820 µH Unshielded Drum Core, Wirewound Inductor 170 mA 7.86Ohm Max 2-SMD, J-Lead
B82442T1824K000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | SIMID |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 820 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 170 mA |
| Current - Saturation (Isat) | 360mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 7.86Ohm Max |
| Q @ Freq | 20 @ 796kHz |
| Frequency - Self Resonant | 2.2MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|
| Part Number | B82442T1824K000 | B82442T1824K050 | B82442T1822K000 | B82442T1822K000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 820UH 170MA 7.86OHM SM | FIXED IND 820UH 170MA 7.86OHM SM | FIXED IND 8.2UH 1.51A 118MOHM SM | FIXED IND 8.2UH 1.51A 118MOHM SM |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
