FIXED IND 20UH 9.5A 13.5MOHM SMD
DatasheetNonstandard, 3 Lead
28,026 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20 µH Shielded Drum Core, Wirewound Inductor 9.5 A 13.5mOhm Nonstandard, 3 Lead

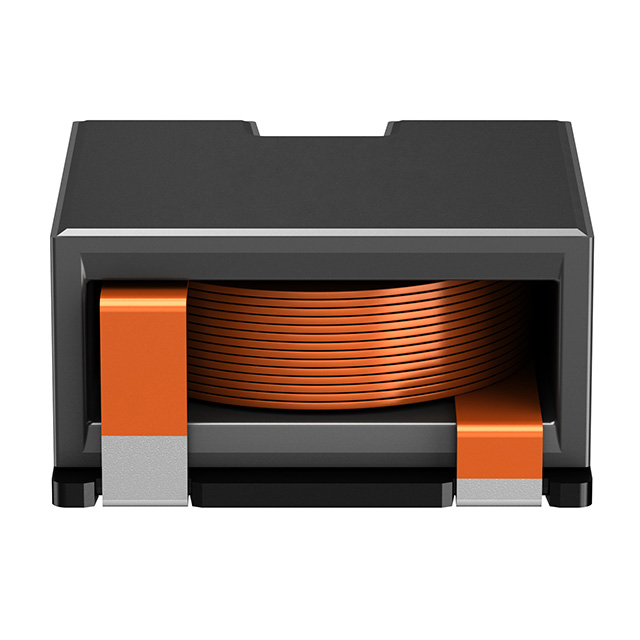

B82559B0203A019
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | ERU19 - Flat Wire Inductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 20 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 9.5 A |
| Current - Saturation (Isat) | 13.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13.5mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, 3 Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.783" L x 0.728" W (19.90mm x 18.50mm) |
| Height - Seated (Max) | 0.378" (9.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B82559B0203A016 | B82559A0112A013 | B82559A0142A013 | B82559A0153A016 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 20UH 10A 12.1 MOHM SMD | FIXED IND 1.1UH 20A 1.72MOHM SMD | FIXED IND 1.4UH 22A 1.5 MOHM SMD | FIXED IND 15UH 11A 11.1MOHM SMD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
