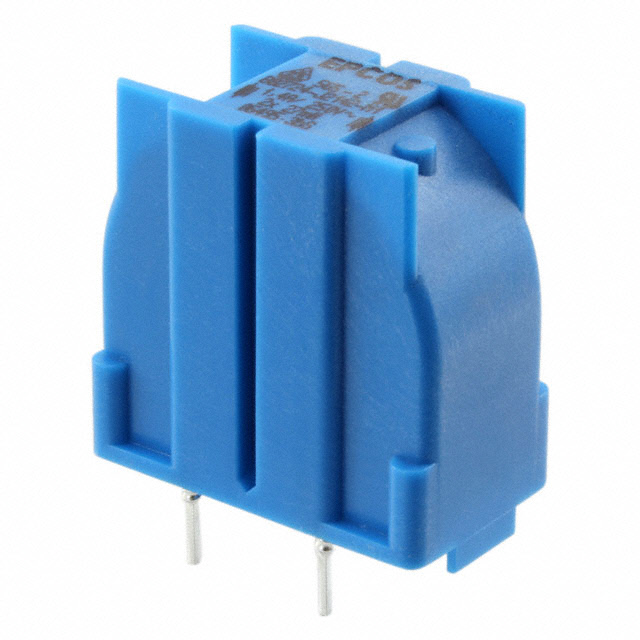

B82724J2142N001
lmages are for reference only.B82724J2142N001
CMC 27MH 1.4A 2LN TH
DatasheetVertical, 4 PC Pin
86,588 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.4A DCR 460mOhm (Typ)
B82724J2142N001
| Category | Filters - Common Mode Chokes - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B82724 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 27 mH @ 10 kHz |
| Current Rating (Max) | 1.4A |
| DC Resistance (DCR) (Max) | 460mOhm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | ENEC, UR, VDE |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.232" L x 0.728" W (31.30mm x 18.50mm) |
| Height (Max) | 1.307" (33.20mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

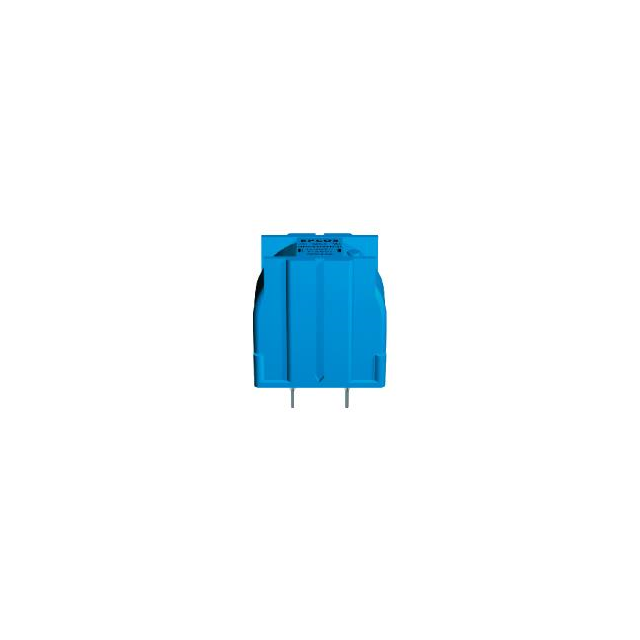

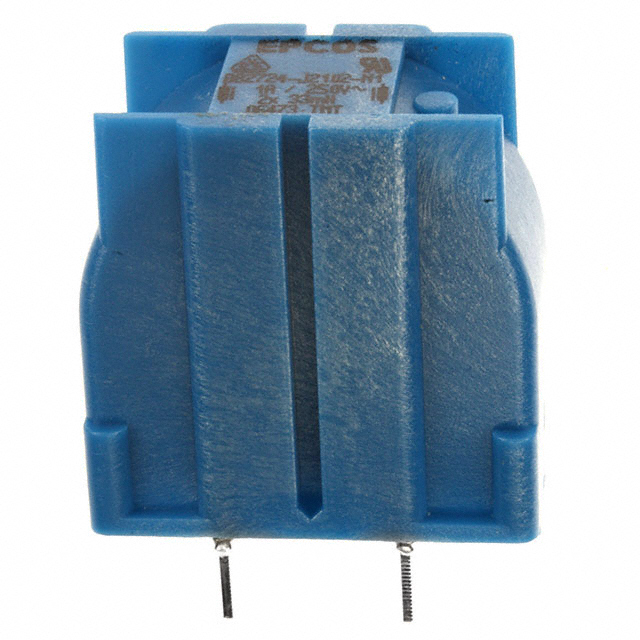

| Part Number | B82724J2142N021 | B82724J2102N001 | B82724J2102N021 | B82724J2103U040 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 37MH 1.4A 2LN TH | CMC 33MH 1A 2LN TH | CMC 39MH 1A 2LN TH | CMC 500UH 10A 2LN TH |
| Series | B82724 | B82724 | B82724 | B82724 |
| Packaging | Tray | Tray | Tray | Tray |
