B82731H2132A030
lmages are for reference only.B82731H2132A030
CMC 6.8MH 1.3A 2LN TH
DatasheetHorizontal, 4 PC Pin
28,643 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.3A DCR 280mOhm (Typ)
B82731H2132A030
| Category | Filters - Common Mode Chokes - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B82731 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 6.8 mH @ 10 kHz |
| Current Rating (Max) | 1.3A |
| DC Resistance (DCR) (Max) | 280mOhm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | ENEC, UR, VDE |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.827" L x 0.827" W (21.00mm x 21.00mm) |
| Height (Max) | 0.610" (15.50mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B82731H2112A030 | B82731H2182A030 | B82730G3102A020 | B82730G3162A020 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

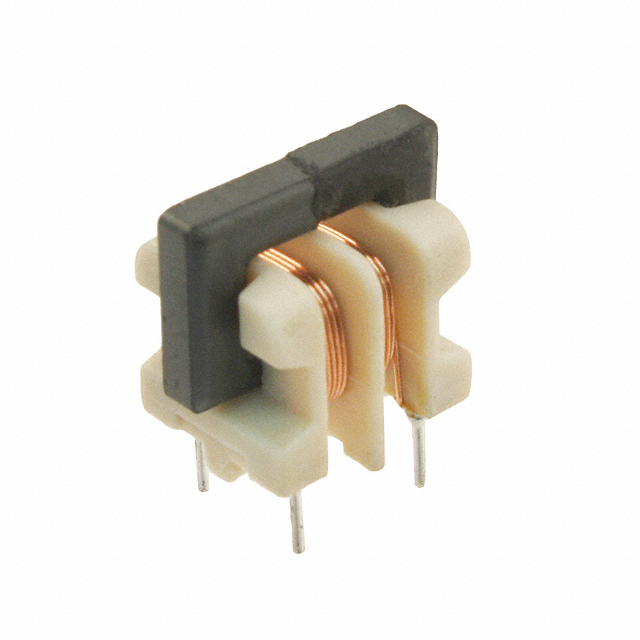

| Description | CMC 10MH 1.1A 2LN TH | CMC 3.3MH 1.8A 2LN TH | CMC 1.8MH 1A 2LN TH | CMC 1MH 1.6A 2LN TH |
| Series | B82731 | B82731 | B82730 | B82730 |
| Packaging | Tray | Tray | Tray | Tray |
