BA56-11EWA
lmages are for reference only.BA56-11EWA
DISPLAY 7SEG 0.56" TRP RED 28DIP
Datasheet28-DIP (0.600", 15.24mm)
65,330 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Anode 2V 20mA 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) 28-DIP (0.600", 15.24mm)
BA56-11EWA
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 3 |
| Size / Dimension | 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Red |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 5.8mcd |
| Wavelength - Peak | 627nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Base Product Number | BA56-11 |
| Display Format | - |
| Product Attribute |  |
|
 |
|

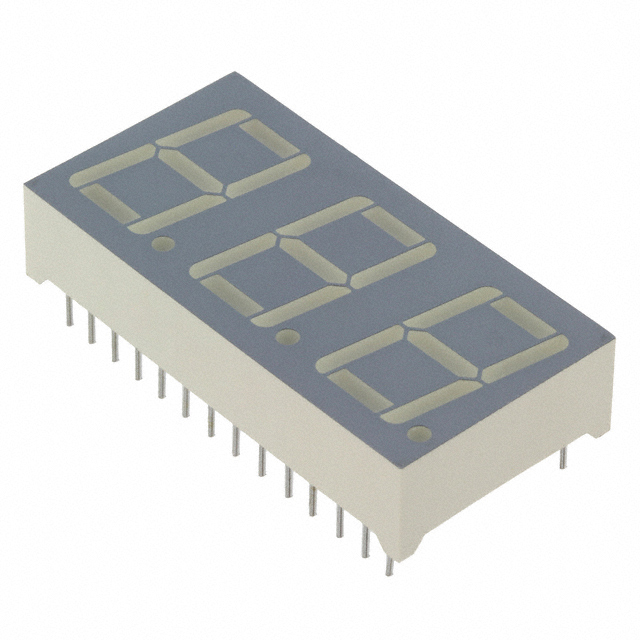

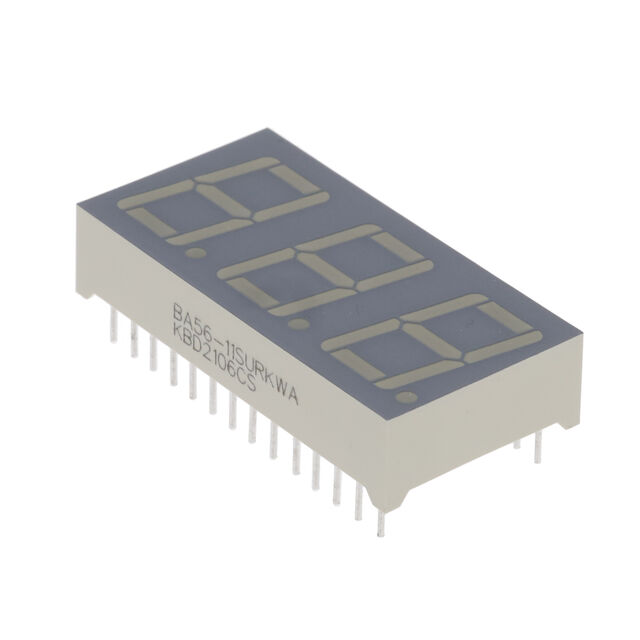

| Part Number | BA56-11GWA | BA56-11SRWA | BA56-11SURKWA | BA56-11YWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.56" TRP GRN 28DIP | DISPLAY 7SEG 0.56" TRP RED 28DIP | DISPLAY 7SEG 0.56" TRP RED 28DIP | DISPLAY 7SEG 0.56" TRP YLW 28DIP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
