BA78M08FP-E2

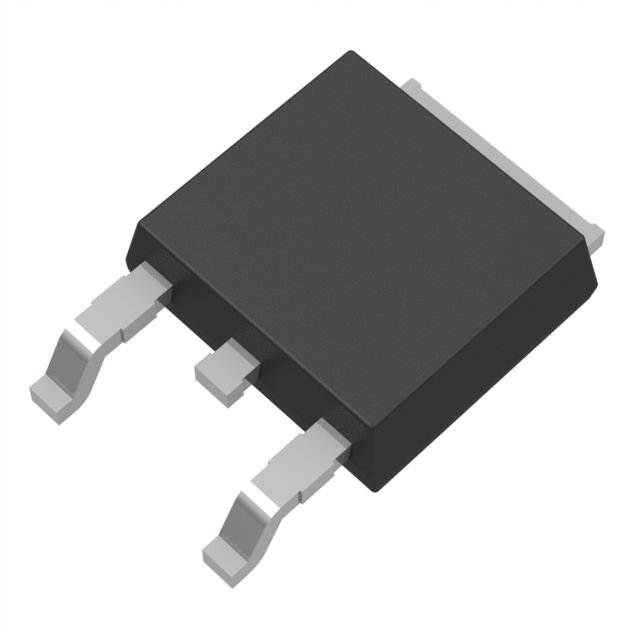

lmages are for reference only.BA78M08FP-E2
IC REG LINEAR 8V 500MA TO252-3
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
53,126 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-252-3
BA78M08FP-E2
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 23V |
| Voltage - Output (Min/Fixed) | 8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 500mA (Typ) |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 6 mA |
| PSRR | 69dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| Base Product Number | BA78M08 |
| Current - Supply (Max) | 800 µA |
| Product Attribute |  |
 |
 |
 |

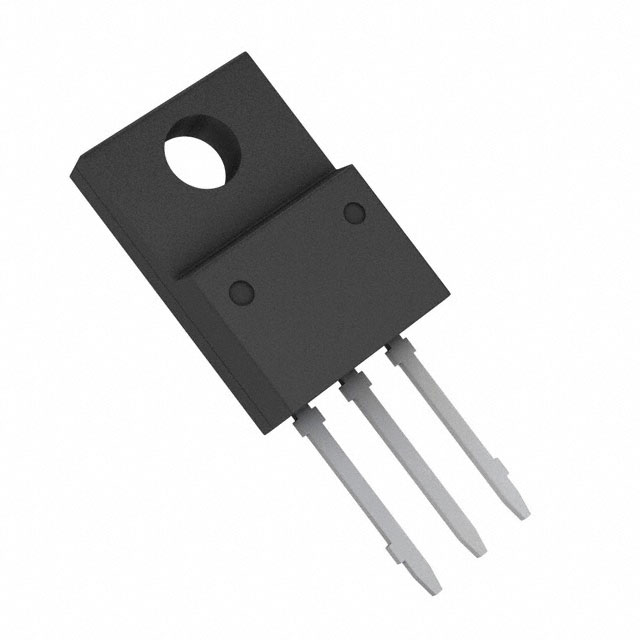

| Part Number | BA78M05CP-E2 | BA78M05FP-E2 | BA78M06CP-E2 | BA78M06FP-E2 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 5V 500MA TO220CP-3 | IC REG LINEAR 5V 500MA TO252-3 | IC REG LINEAR 6V 500MA TO220CP-3 | IC REG LINEAR 6V 500MA TO252-3 |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
