BAT54CTB6_R1_00001

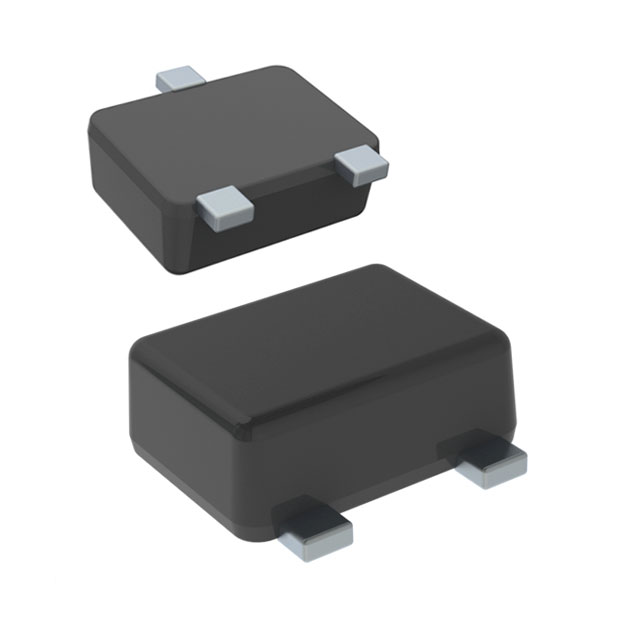

lmages are for reference only.BAT54CTB6_R1_00001
DIODE ARR SCHOT 30V 200MA SOT563
DatasheetSOT-563, SOT-666
91,137 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 2 Pair Common Cathode 30 V 200mA (DC) Surface Mount SOT-563, SOT-666
BAT54CTB6_R1_00001
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Panjit International Inc. |
| Series | BAT54TB6 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 2 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563, SOT-666 |
| Supplier Device Package | SOT-563 |
| Base Product Number | BAT54 |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | BAT54CTB-AU_R1_000A1 | BAT54CTB_R1_00001 | BAT 54-04 B5003 | BAT 54-04W E6327 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DIODE ARR SCHOT 30V 200MA SOT523 | DIODE ARR SCHOT 30V 200MA SOT523 | DIODE ARR SCHOTT 30V 200MA SOT23 | DIODE ARR SCHOT 30V 200MA SOT323 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
