DIODE ARRAY GP 90V 215MA TO236AB
DatasheetTO-236-3, SC-59, SOT-23-3
11,952 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 1 Pair Common Anode 90 V 215mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
BAW56,215
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Anode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 90 V |
| Current - Average Rectified (Io) (per Diode) | 215mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | TO-236AB |
| Base Product Number | BAW56 |
| Reverse Recovery Time (trr) | 4 ns |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
|
 |
 |
| Part Number | BAW56,235 | BAW 56 B5003 | BAW 56 E6433 | BAW 56T E6327 |
| Manufacturer | Nexperia USA Inc. | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | |||

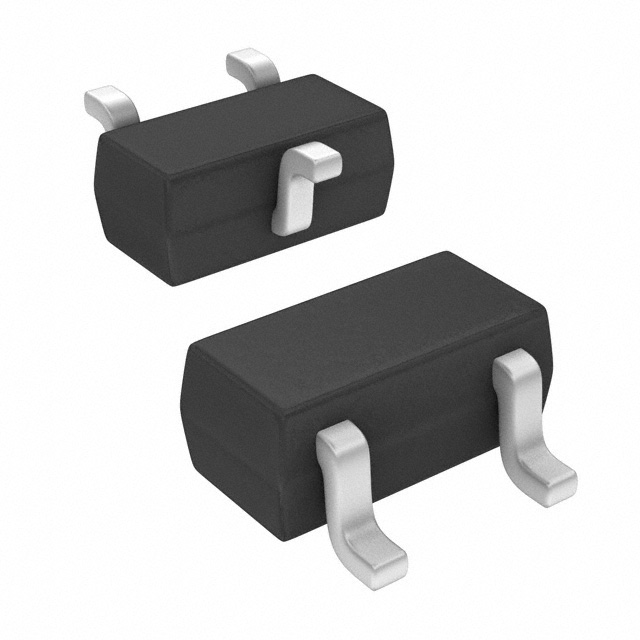

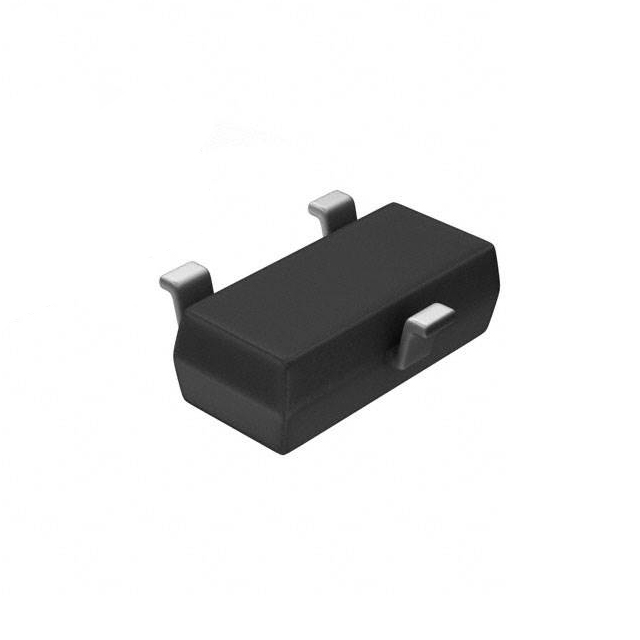

| Description | DIODE ARRAY GP 90V 215MA TO236AB | DIODE ARRAY GP 80V 200MA PGSOT23 | DIODE ARRAY GP 80V 200MA PGSOT23 | DIODE ARRAY GP 80V 200MA SC75-3D |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
