Product CatalogPart Number
BC549C
Manufacturer
onsemiDescription
TRANS NPN 30V 0.1A TO92
Datasheet
DatasheetPackage
TO-226-3, TO-92-3 Long Body
In Stock
92,008 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BC549C
BC549C
lmages are for reference only.Payment Methods
Delivery Services
Bipolar (BJT) Transistor NPN 30 V 100 mA 250MHz 625 mW Through Hole TO-92 (TO-226)
Quick Inquiry
BC549C
Specifications
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 5V |
| Power - Max | 625 mW |
| Frequency - Transition | 250MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body |
| Supplier Device Package | TO-92 (TO-226) |
| Base Product Number | BC549 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | BC549 | BC549A | BC549A A1G | BC549A B1G |
| Manufacturer | onsemi | Diotec Semiconductor | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TRANS NPN 30V 0.1A TO-92-3 | TRANS NPN 30V 0.1A TO-92 | TRANS NPN 30V 0.1A TO-92 | TRANS NPN 30V 0.1A TO-92 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Box (TB) | Bulk |
Customers Also Interested in
Recommended Products
BC549
onsemi
BC549A
Diotec Semiconductor
BC549A A1G
Taiwan Semiconductor Corporation
BC549A B1G
Taiwan Semiconductor Corporation
BC549ATA
onsemi
BC549B
onsemi
BC549B
Diotec Semiconductor
BC549B
Fairchild Semiconductor
BC549B A1G
Taiwan Semiconductor Corporation
BC549BBK
Diotec Semiconductor
BC549BTA
onsemi
BC549BTAR
onsemi
BC549BTF
onsemi
BC549BTFR
onsemi
BC549C
Diotec Semiconductor

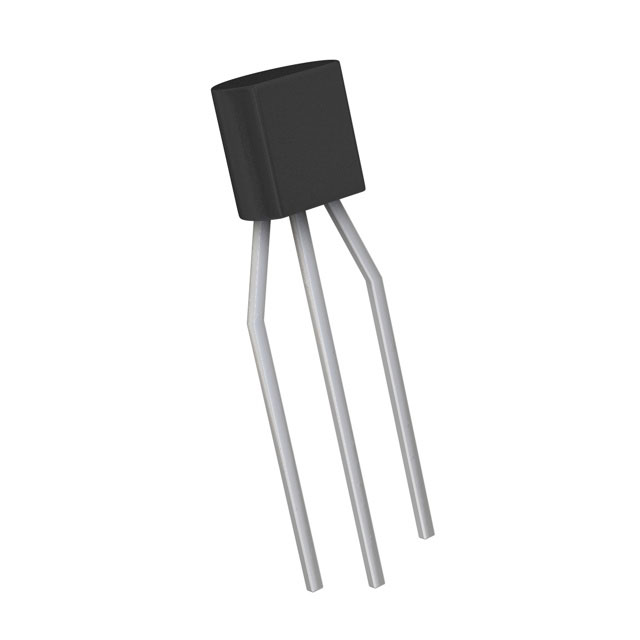

BC549C A1G
Taiwan Semiconductor Corporation

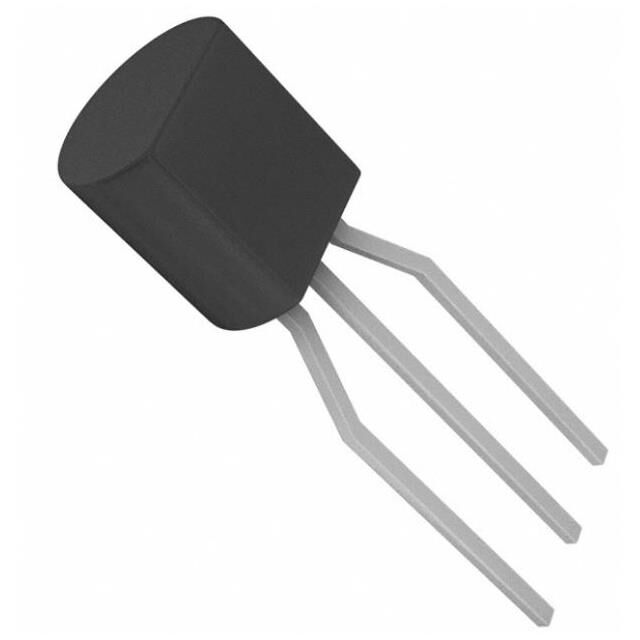

BC549C B1G
