BC817RA147
lmages are for reference only.BC817RA147
TRANS 2NPN 45V 500MA DFN1412-6
Datasheet6-XFDFN Exposed Pad
11,695 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bipolar (BJT) Transistor Array 2 NPN 45V 500mA 100MHz 500mW Surface Mount DFN1412-6
BC817RA147
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | NXP Semiconductors |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Transistor Type | 2 NPN |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 45V |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 100mA, 1V |
| Power - Max | 500mW |
| Frequency - Transition | 100MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | DFN1412-6 |
| Base Product Number | BC817 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

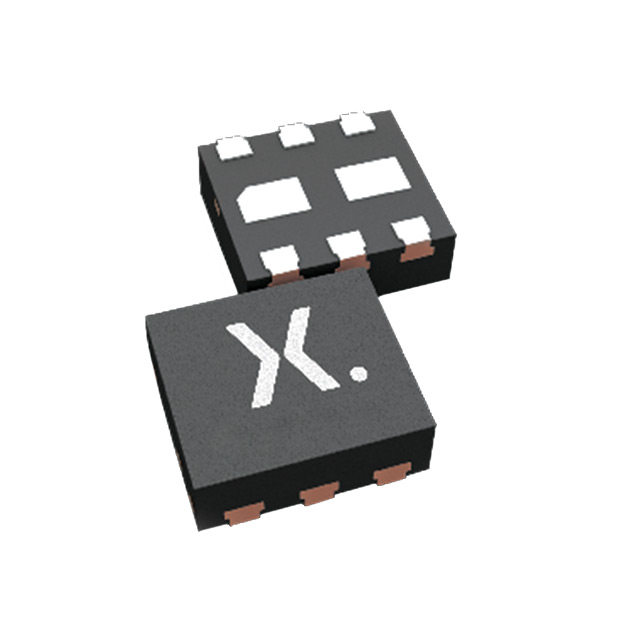

| Part Number | BC817RAPNZ | BC817RAZ | BC817BPN | BC817DPN,115 |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Diotec Semiconductor | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TRANS NPN/PNP 45V 500MA DFN1412 | TRANS 2NPN 45V 500MA DFN1412-6 | TRANS NPN/PNP 45V 500MA SOT-26 | TRANS NPN/PNP 45V 500MA 6-TSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
