Product CatalogPart Number
BCM3814B60E15A3C10
Manufacturer
Vicor CorporationDescription
DC DC CONVERTER 13.5V 1.755 KW
Datasheet
DatasheetPackage
Module
In Stock
10,322 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BCM3814B60E15A3C10
BCM3814B60E15A3C10
lmages are for reference only.Payment Methods
Delivery Services
Bus Converter Module DC DC Converter 1 Output 13.5V 130A 36V - 60V Input
Quick Inquiry
BCM3814B60E15A3C10
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Vicor Corporation |
| Series | VI Chip® BCM® |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Bus Converter Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 13.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 130A |
| Power (Watts) | 1.755 kW |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -20°C ~ 100°C |
| Efficiency | 97% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Size / Dimension | 3.76" L x 1.40" W x 0.37" H (95.6mm x 35.5mm x 9.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | BCM3814 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

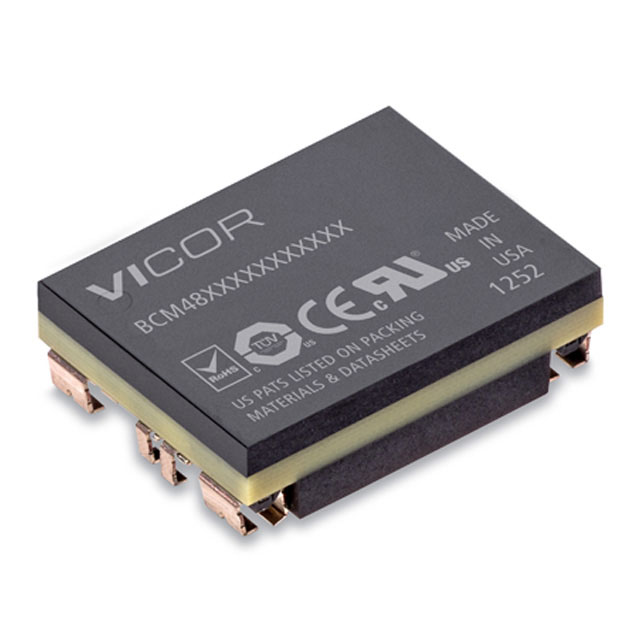

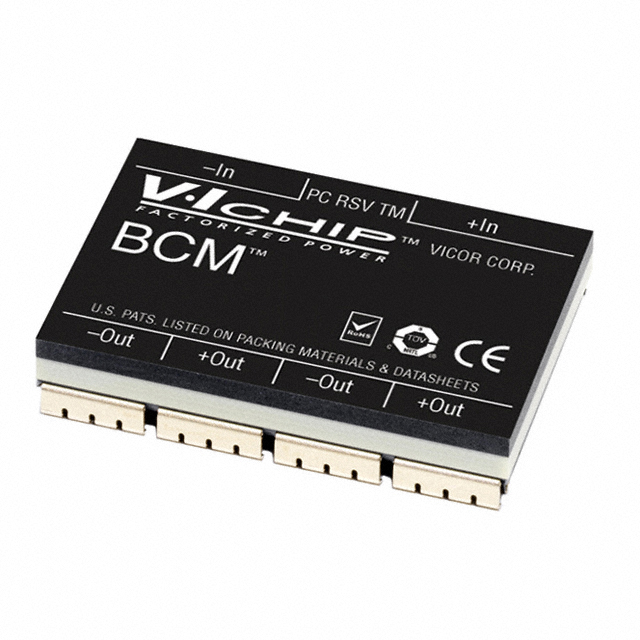

| Part Number | BCM3814B60E15A3CNX | BCM270T450T270A00 | BCM352F110T300A00 | BCM352F110T300B00 |
| Manufacturer | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER | BCM2 270/200/330/45/270 W | DC DC CONVERTER 11V 300W | DC DC CONVERTER 11V 300W |
| Series | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| Packaging | Tray | Tray | Tube | Tray |
