BD00C0AWFP2-CE2
lmages are for reference only.BD00C0AWFP2-CE2
35V VOLTAGE RESISTANCE 1A, HIGH-
DatasheetTO-263-6, D2PAK (5 Leads + Tab), TO-263BA
74,363 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A TO-263-5
BD00C0AWFP2-CE2
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26.5V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 15V |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 2.5 mA |
| PSRR | 55dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 |
| Base Product Number | BD00C0 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

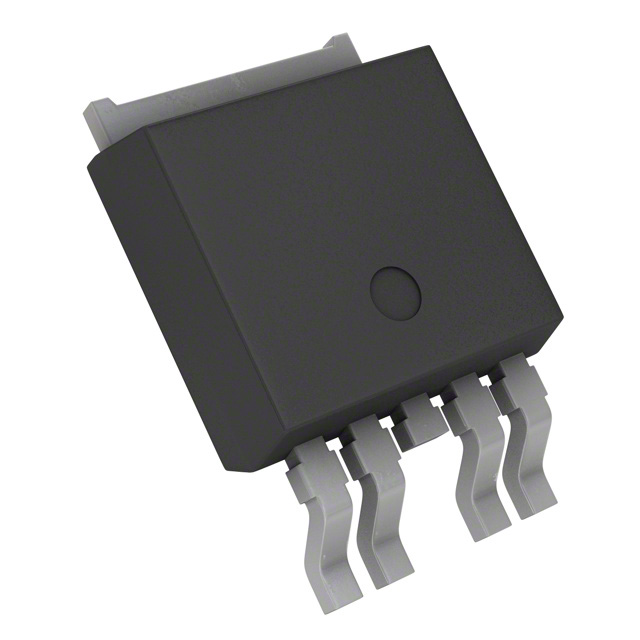

| Part Number | BD00C0AWFP-CE2 | BD00C0AWFP-E2 | BD00C0AWFPS-ME2 | BD00C0AWCP-V5E2 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR POS ADJ 1A TO252-5 | IC REG LINEAR POS ADJ 1A TO252-5 | IC REG LIN POS ADJ 1A TO252S-5 | IC REG LIN POS ADJ 1A TO220CP-V5 |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
