BD70HA5MEFJ-ME2
lmages are for reference only.BD70HA5MEFJ-ME2
IC REG LINEAR 7V 500MA 8HTSOP-J
Datasheet8-SOIC (0.154", 3.90mm Width) Exposed Pad
81,907 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 8-HTSOP-J
BD70HA5MEFJ-ME2
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 8V |
| Voltage - Output (Min/Fixed) | 7V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | - |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start |
| Operating Temperature | -40°C ~ 105°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-HTSOP-J |
| Base Product Number | BD70HA5 |
| Current - Supply (Max) | 1.2 mA |
| Product Attribute |  |
 |
 |
 |

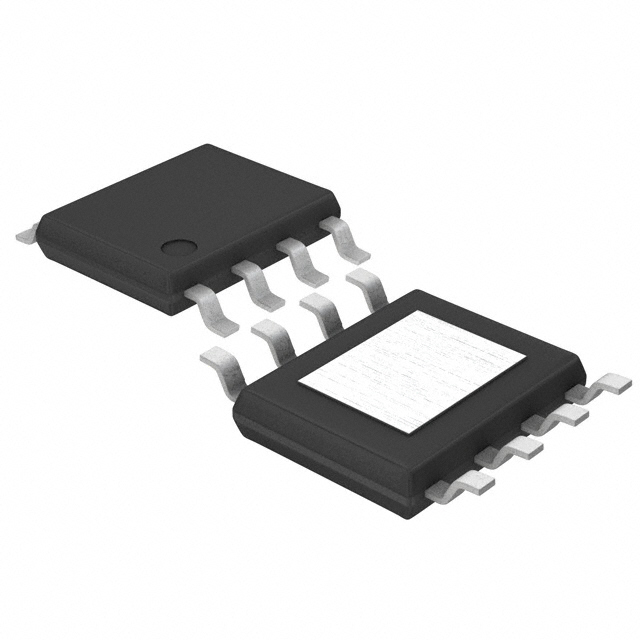

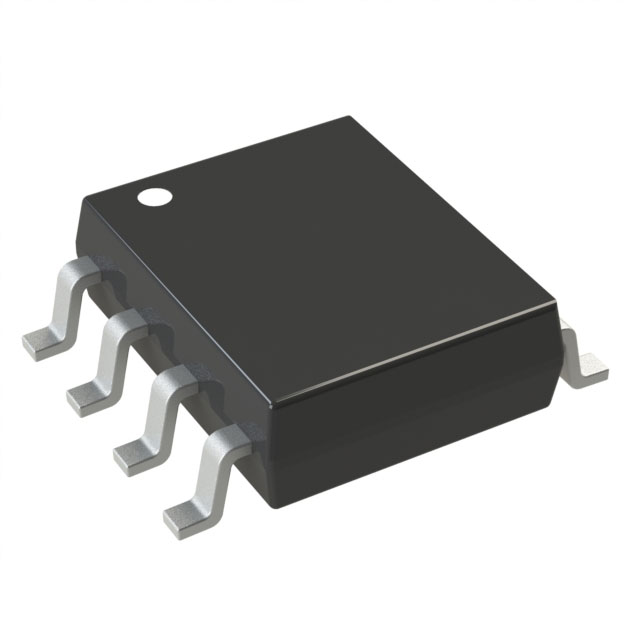

| Part Number | BD70HA5MEFJ-LBH2 | BD70HA3MEFJ-LBH2 | BD70HA3MEFJ-ME2 | BD70HA3VEFJ-ME2 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 7V 500MA 8HTSOP | 300MA 7V, FIXED OUTPUT, HIGH-ACC | IC REG LINEAR 7V 300MA 8HTSOP-J | 300MA 7V, FIXED OUTPUT, HIGH-ACC |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
