BD80C0AWFP-CE2
lmages are for reference only.BD80C0AWFP-CE2
IC REG LINEAR 8V 1A TO252-5
DatasheetTO-252-5, DPAK (4 Leads + Tab), TO-252AD
26,076 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252-5
BD80C0AWFP-CE2
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26.5V |
| Voltage - Output (Min/Fixed) | 8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 2.5 mA |
| PSRR | 50dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Supplier Device Package | TO-252-5 |
| Base Product Number | BD80C0 |
| Current - Supply (Max) | 2.5 mA |
| Product Attribute |  |
 |
 |
 |

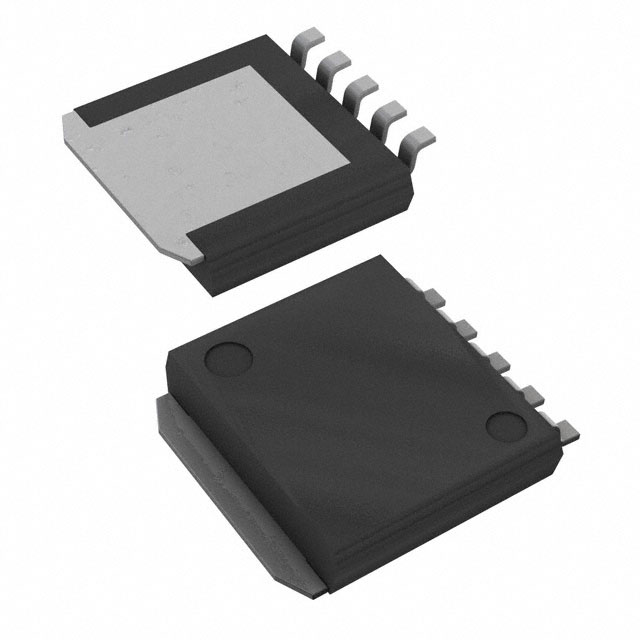

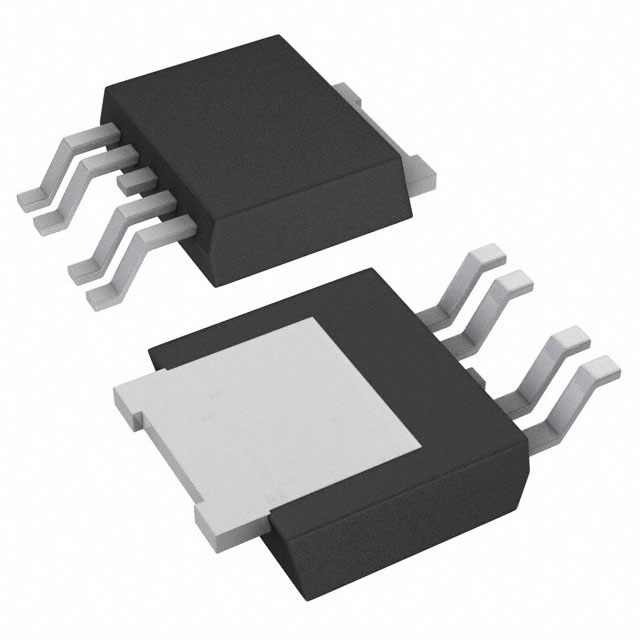

| Part Number | BD80C0AWHFP-CTR | BD800M5WFP2-CE2 | BD800M5WFPJ-CE2 | BD800M5WHFP-CTR |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 8V 1A HRP-5 | IC REG LIN POS ADJ 500MA TO263-5 | IC REG LIN POS ADJ 500MA TO252 | IC REG LIN POS ADJ 500MA HRP-5 |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
