Product CatalogPart Number
BDBNR000000S00
Manufacturer
NextGen ComponentsDescription
Red Top LED PLCC-2
Datasheet
DatasheetPackage
1411 (3528 Metric)
In Stock
79,360 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BDBNR000000S00
BDBNR000000S00

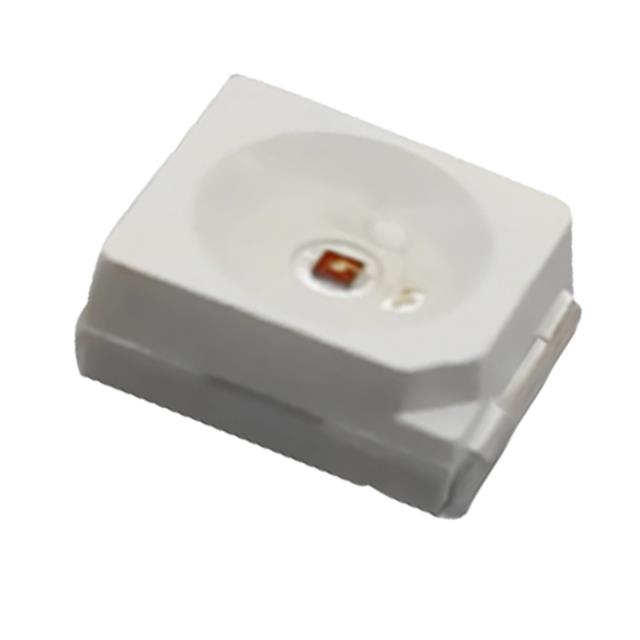

lmages are for reference only.Payment Methods
Delivery Services
Red 620nm LED Indication - Discrete 2.1V 1411 (3528 Metric)
Quick Inquiry
BDBNR000000S00
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | NextGen Components |
| Series | BDB |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Color | Red |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 1890mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 620nm |
| Wavelength - Peak | 633nm |
| Features | - |
| Package / Case | 1411 (3528 Metric) |
| Supplier Device Package | P-LCC-2 |
| Size / Dimension | 3.50mm L x 2.80mm W |
| Height (Max) | 1.95mm |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | BDBNA000000S00 | BDBNCA000000S0 | BDBNSR000000S0 | BDBNY000000S00 |
| Manufacturer | NextGen Components | NextGen Components | NextGen Components | NextGen Components |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | AMBER Top LED PLCC-2 | CYAN Top LED PLCC-2 | SUPER RED Top LED PLCC-2 | Yellow Top LED PLCC-2 |
| Series | NextGen Components | NextGen Components | NextGen Components | NextGen Components |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
