BDJ0GA3MEFJ-LBH2
lmages are for reference only.BDJ0GA3MEFJ-LBH2
300MA 10V, FIXED OUTPUT, HIGH-AC
Datasheet8-SOIC (0.154", 3.90mm Width) Exposed Pad
98,743 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 8-HTSOP-J
BDJ0GA3MEFJ-LBH2
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 14V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 1.2 mA |
| PSRR | - |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 105°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-HTSOP-J |
| Base Product Number | BDJ0GA3 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

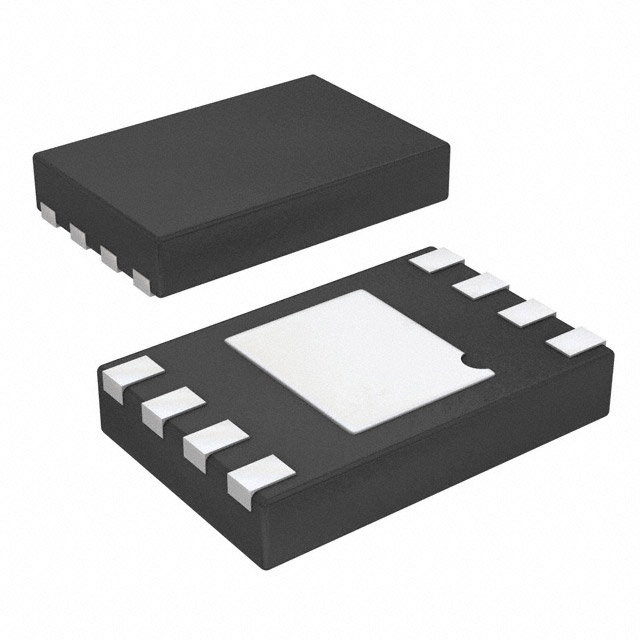

| Part Number | BDJ0GA3MEFJ-ME2 | BDJ0GA3VEFJ-ME2 | BDJ0GA3WEFJ-E2 | BDJ0GA3WNUX-TR |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 10V 300MA 8HTSOP | 300MA 10V, FIXED OUTPUT, HIGH-AC | IC REG LINEAR 10V 300MA 8HTSOP | IC REG LINEAR 10V VSON008X2030 |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
