BGS13S4N9E6327XTSA1

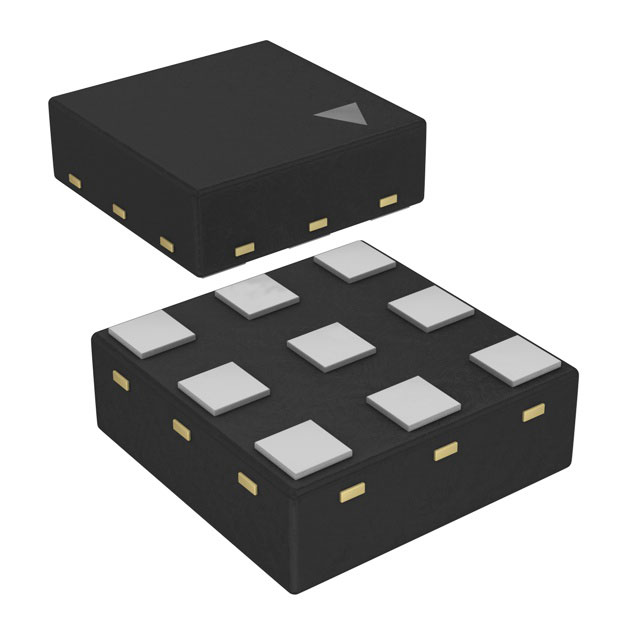

lmages are for reference only.BGS13S4N9E6327XTSA1
IC RF SWITCH SP3T 3GHZ TSNP9-3
Datasheet9-XFLGA
49,977 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Switch IC General Purpose SP3T 50Ohm PG-TSNP-9-3
BGS13S4N9E6327XTSA1
| Category | RF and Wireless - RF Switches - |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| RF Type | General Purpose |
| Topology | - |
| Circuit | SP3T |
| Frequency Range | 100MHz ~ 3GHz |
| Isolation | 19dB |
| Insertion Loss | 0.55dB |
| Test Frequency | 2.7GHz |
| P1dB | - |
| IIP3 | - |
| Features | - |
| Impedance | 50Ohm |
| Voltage - Supply | 1.8V ~ 3.3V |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 9-XFLGA |
| Supplier Device Package | PG-TSNP-9-3 |
| Base Product Number | BGS13S4 |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | BGS13S4N9E6327XTSA1 | BGS110MC202E6433XUSA1 | BGS110MC202E6433XUSA1 | BGS110MN20E6327XTSA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IC RF SWITCH SP3T 3GHZ TSNP9-3 | IC RF SWITCH | IC RF SWITCH | IC RF SWITCH SP10T 2.7GHZ TSNP20 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk | Tape & Reel (TR) |
