BK1/TDC10-25-R
lmages are for reference only.BK1/TDC10-25-R
FUSE GLASS 25A 32VAC 3AB 3AG
Datasheet3AB, 3AG, 1/4" x 1-1/4"
46,531 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25 A 32 V AC DC Fuse Cartridge, Glass Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
BK1/TDC10-25-R
| Category | Circuit Protection - Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | TDC10 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge, Glass |
| Current Rating (Amps) | 25 A |
| Voltage Rating - AC | 32 V |
| Voltage Rating - DC | - |
| Response Time | Fast Blow |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Breaking Capacity @ Rated Voltage | 250A |
| Melting I²t | - |
| Approval Agency | - |
| Operating Temperature | - |
| Color | - |
| Size / Dimension | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) |
| Base Product Number | - |
| DC Cold Resistance | - |
| Product Attribute | |
 |
 |
 |

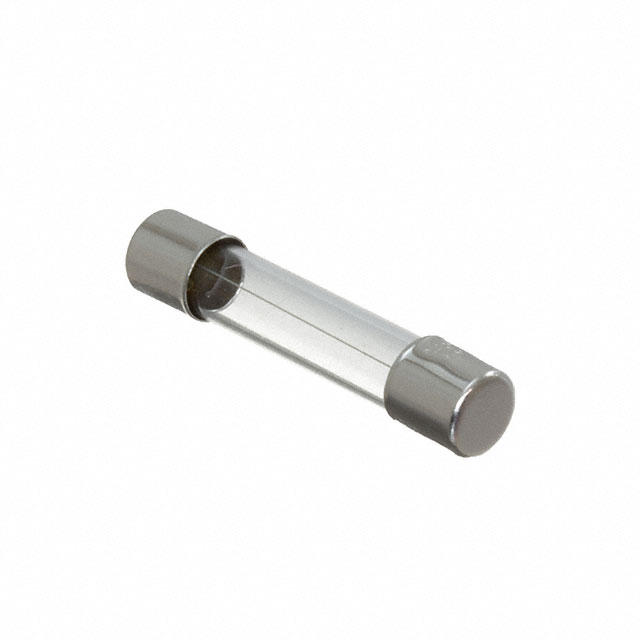

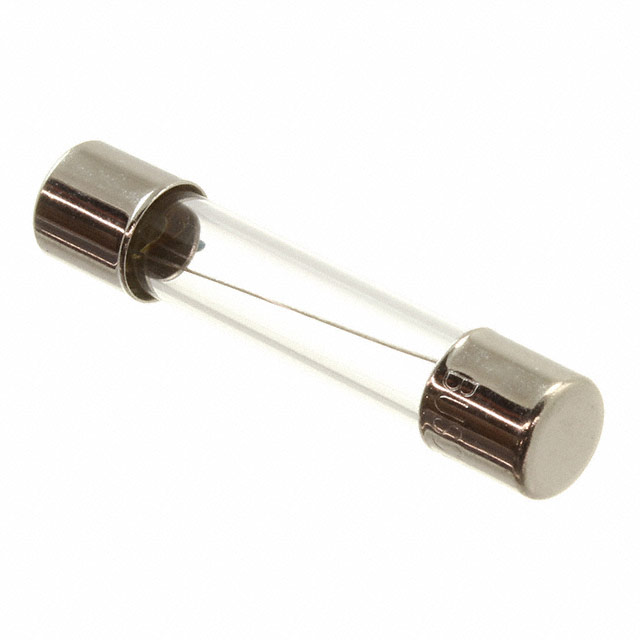

| Part Number | BK1/TDC10-12-R | BK1/TDC10-15-R | BK1/TDC10-20-R | BK1/AHC-30-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | FUSE GLASS 12A 32VAC 3AB 3AG | FUSE GLASS 15A 32VAC 3AB 3AG | FUSE GLASS 20A 32VAC 3AB 3AG | FUSE CERAMIC 30A 600VAC 3AB 3AG |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
