Product CatalogPart Number
BKR400AB10
Manufacturer
SanRex CorporationDescription
DIODE MODULE SCHOTTKY 100V 400A
Datasheet
DatasheetPackage
Module
In Stock
61,852 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BKR400AB10
BKR400AB10
lmages are for reference only.Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 100 V 400A Chassis Mount Module
Quick Inquiry
BKR400AB10
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | SanRex Corporation |
| Series | - |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) (per Diode) | 400A |
| Voltage - Forward (Vf) (Max) @ If | 930 mV @ 400 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 40 mA @ 100 V |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | BKA400 |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |  |  |  |

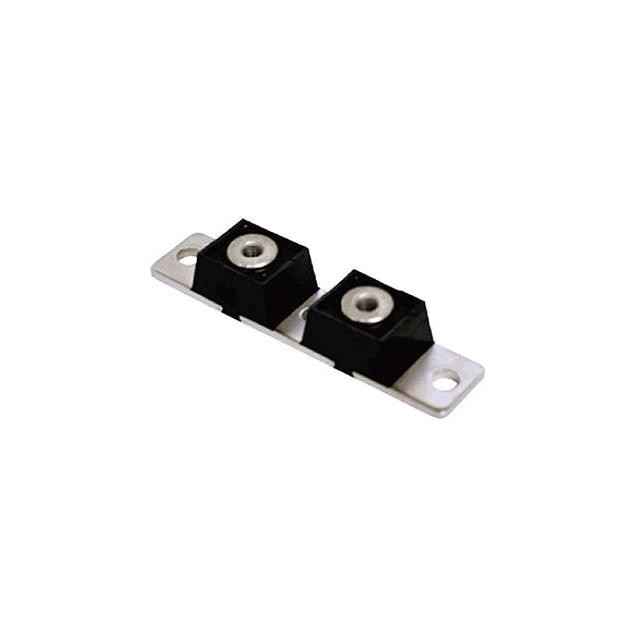

| Part Number | BKR400ABZ50 | BAT30CFILM | MA6X12100L | DSA60C45HB |
| Manufacturer | SanRex Corporation | STMicroelectronics | Panasonic Electronic Components | IXYS |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE MODULE SCHOTTKY 50V 200A | DIODE ARR SCHOT 30V 300MA SOT233 | DIODE ARRAY GP 80V 100MA MINI6 | DIODE ARR SCHOTT 45V 30A TO247AD |
| Series | - | - | - | - |
| Packaging | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
